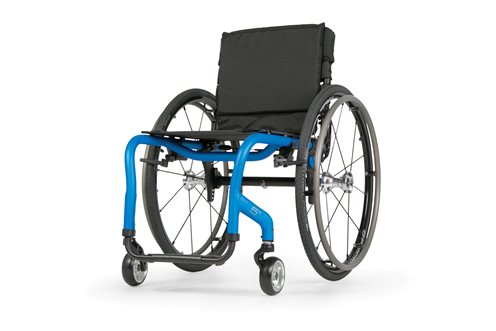

5R Rigid Wheelchair

Highly adjustable to elevate your mobility

Find Your Local Dealer
Find Your Dealer

Highly adjustable wheelchair to elevate your mobility

The Quickie® 5R is designed to deliver superior rigid wheelchair performance day after day. As you and your environment evolve, or as you refine your riding capabilities, the 5R's frame and components adjust to elevate your mobility.

Find Your Local Dealer

Available colors:

The color options shown are for reference only. They are not intended as accurate representations.

Options and Prices

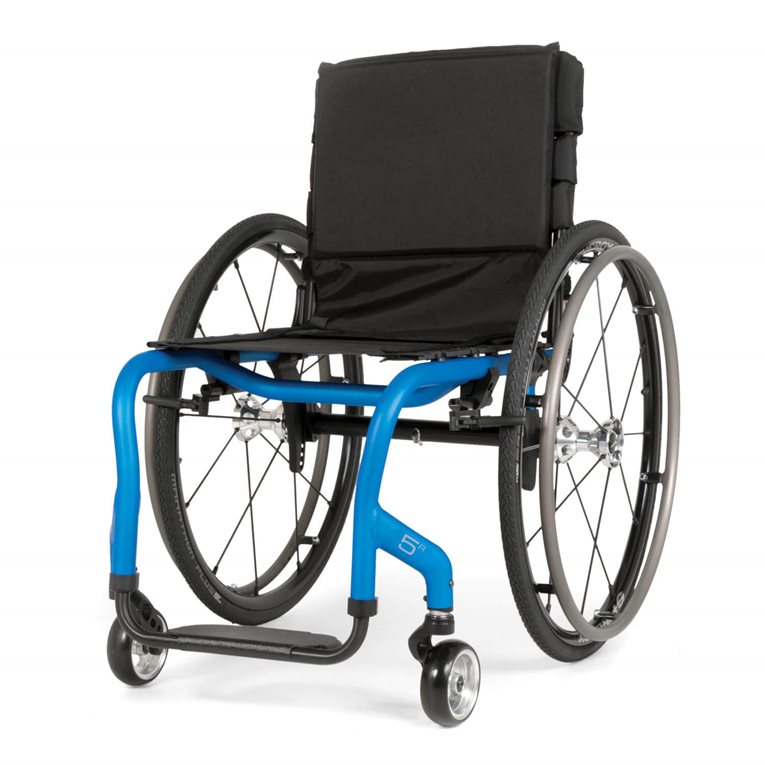

QUICKIE 5R Manual Rigid Ultra Lightweight Wheelchair
Meet Leslie Peoples

Meet Leslie Peoples

Watch how Leslie explores her city with ease in the lightweight 5R.

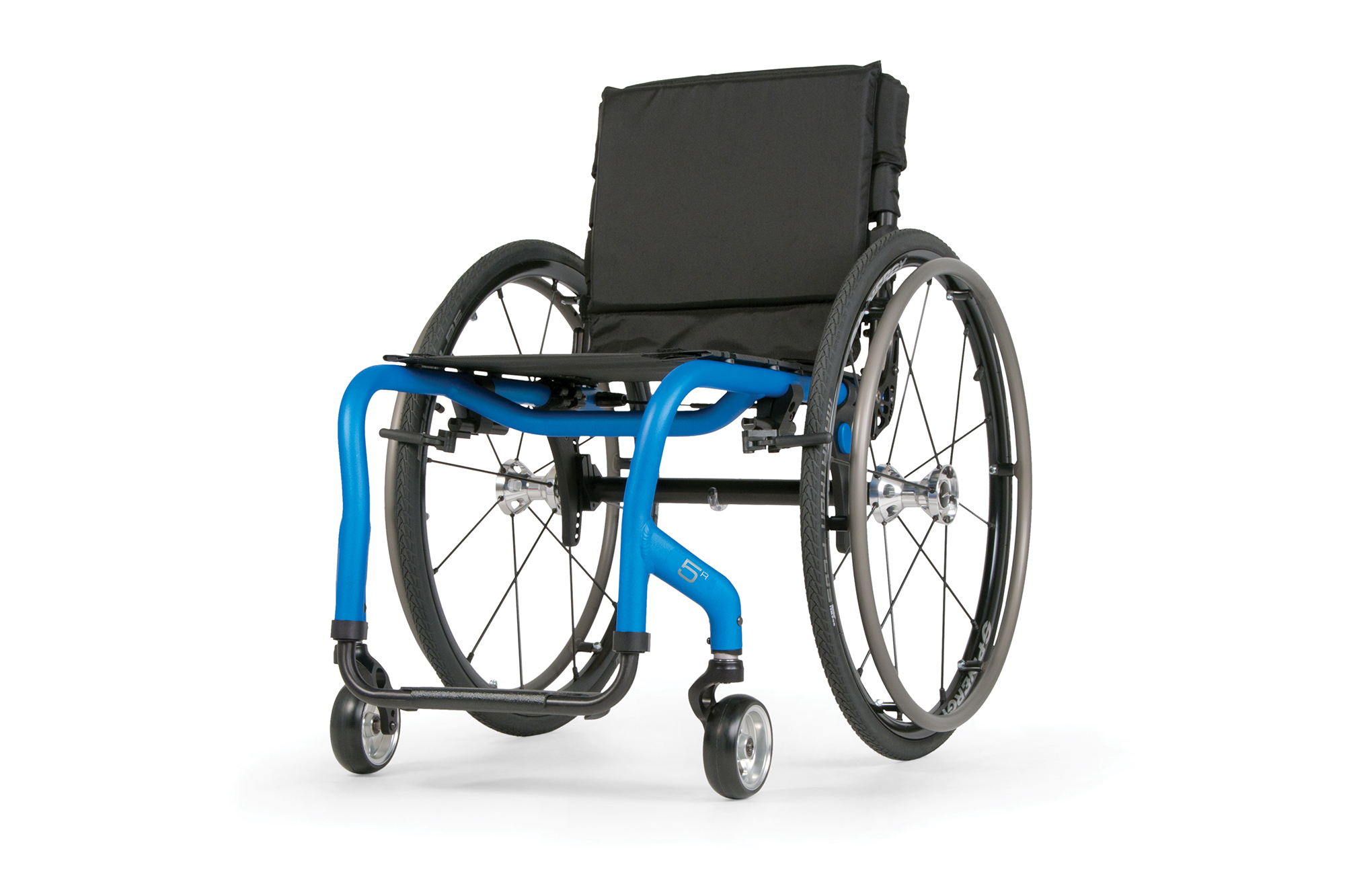

Open Frame Design with Hydro-Formed Caster Link

Open Frame Design with Hydro-Formed Caster Link

The Quickie 5R’s open frame takes the proven ride quality and geometry that so many have loved about the GT and improves upon it with a swept-back, hydro-formed caster link for added style and a smooth ride.

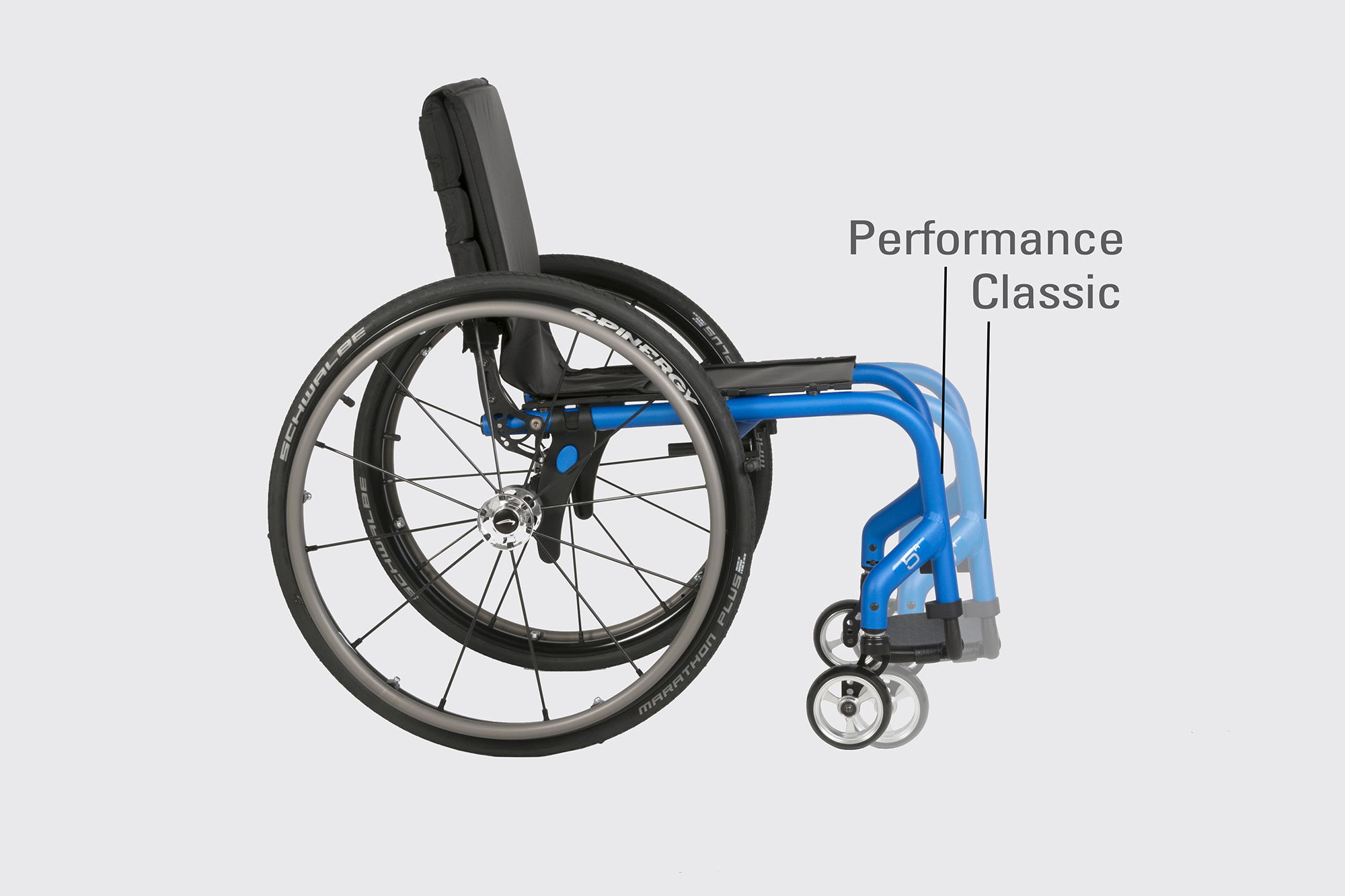

The 5R offers two frame options. The Classic frame features a traditional frame length for maximum stability. The shortened Performance frame length offers maximum responsiveness.

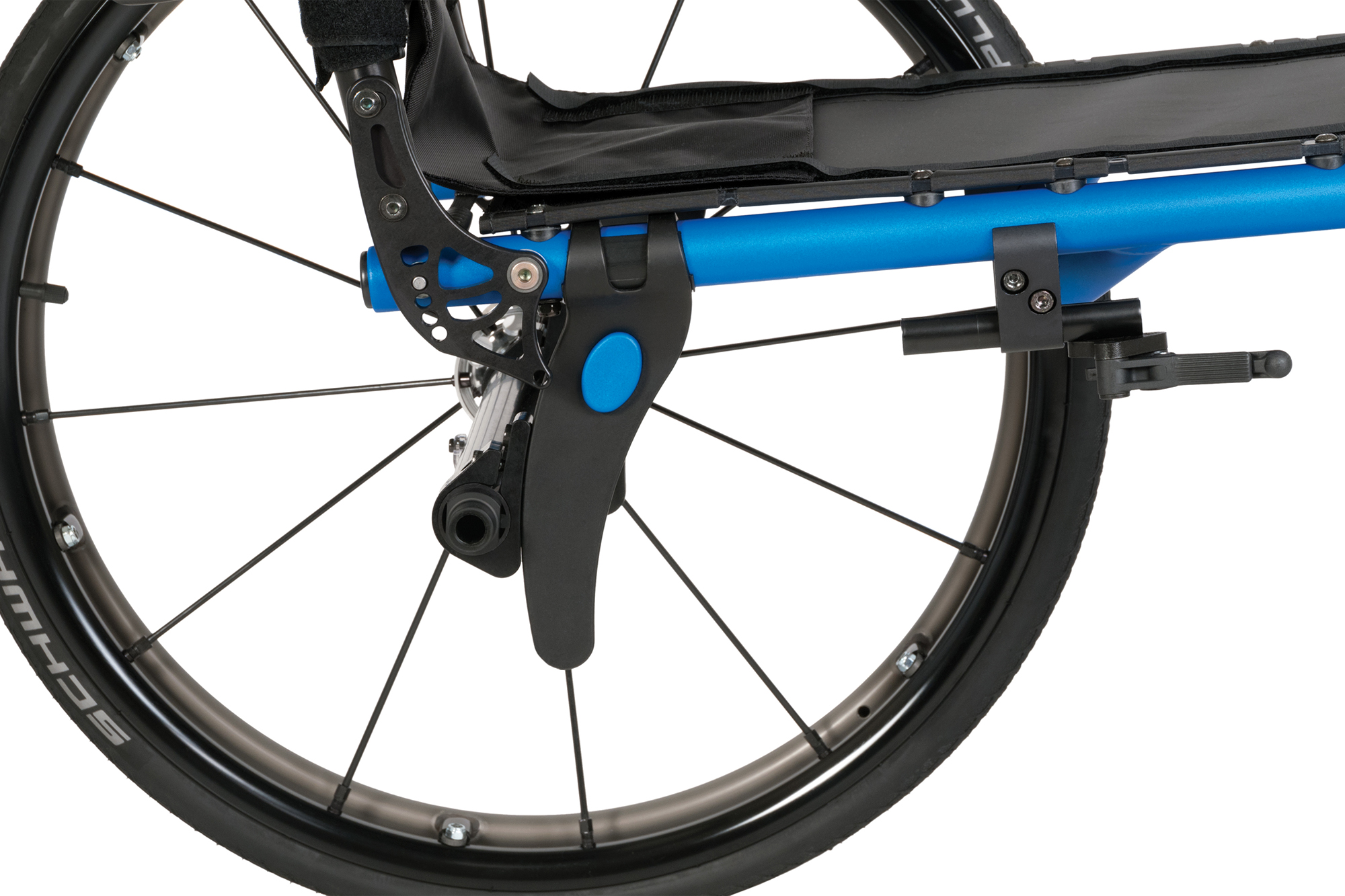

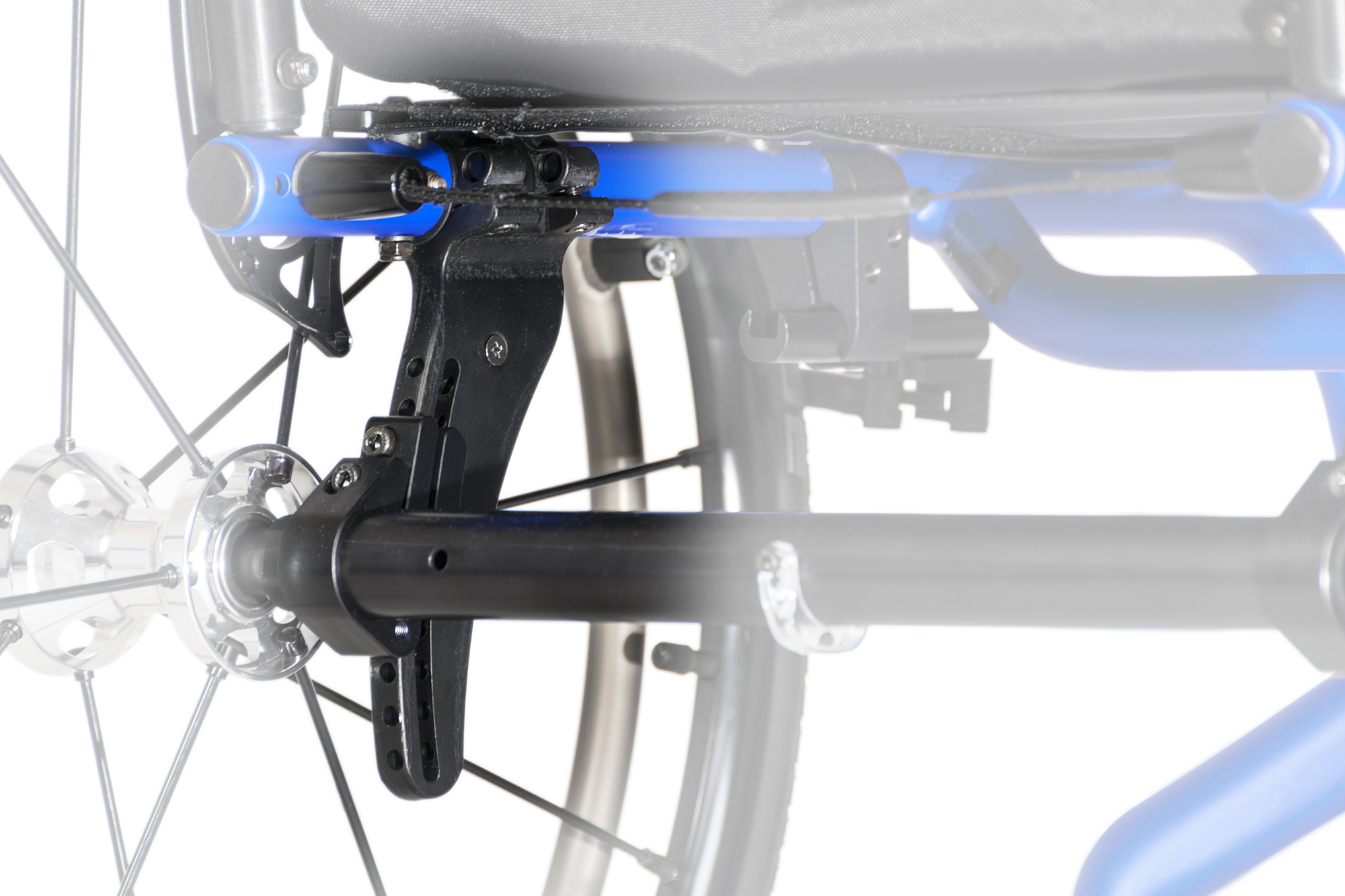

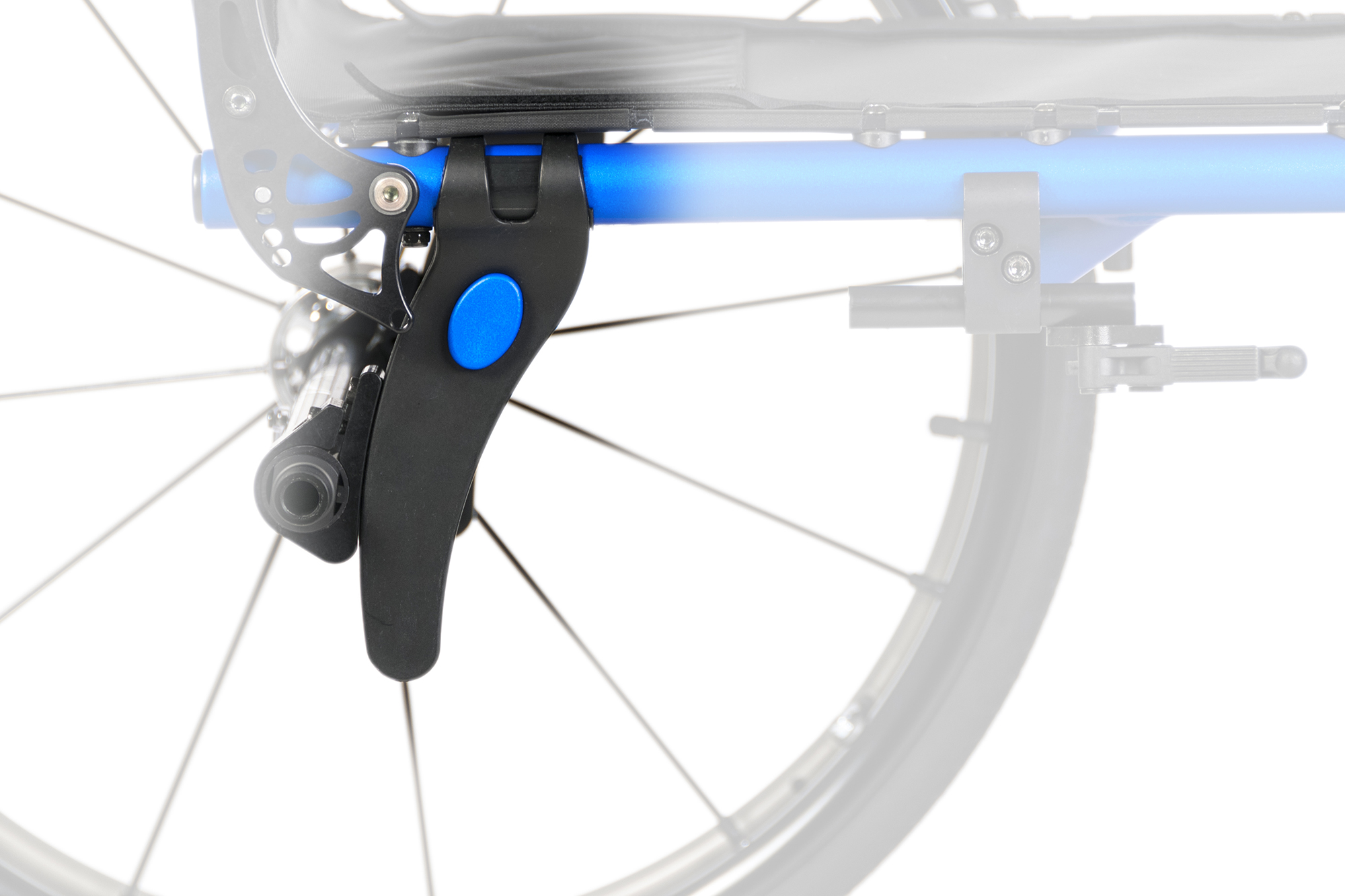

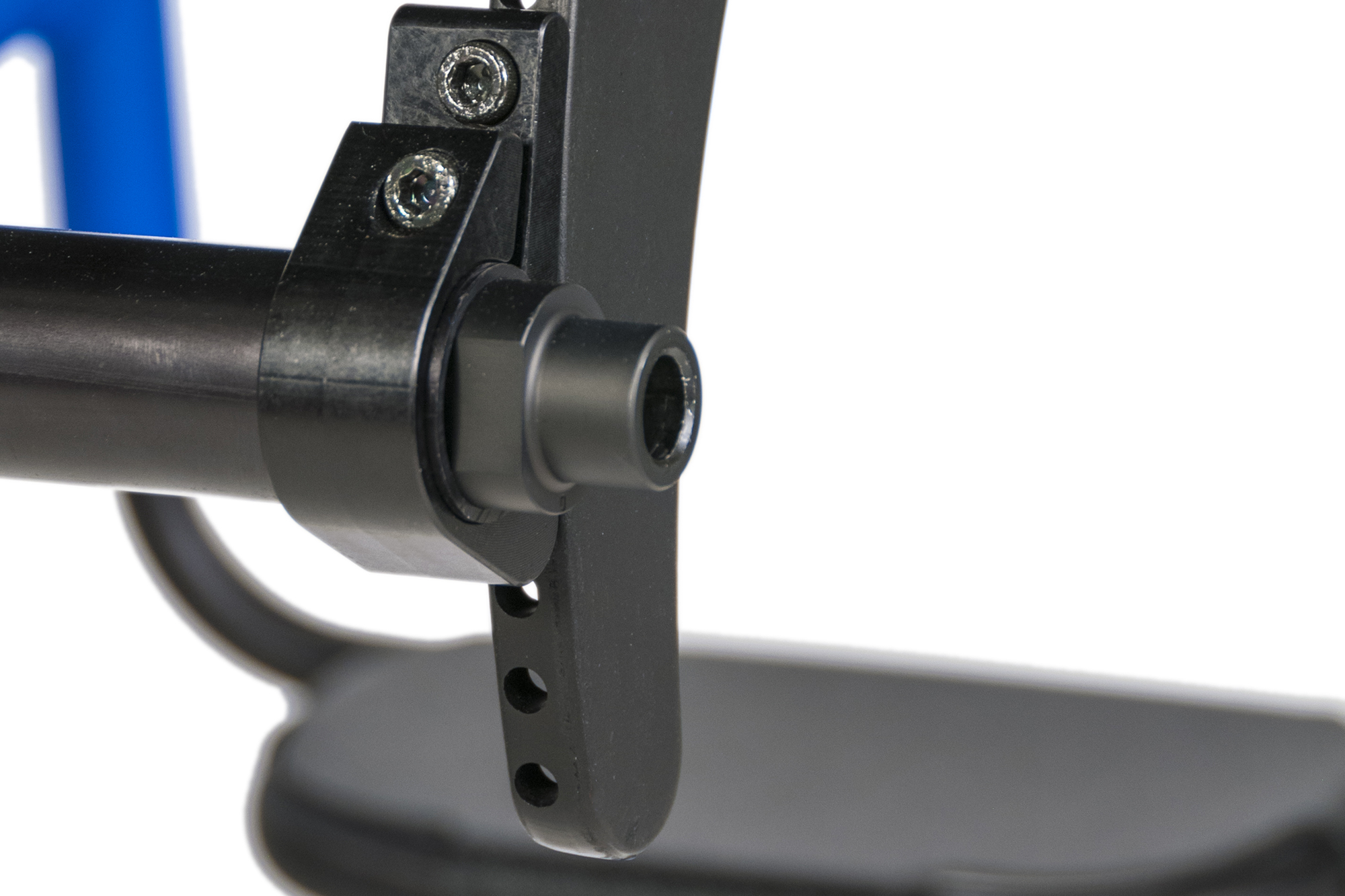

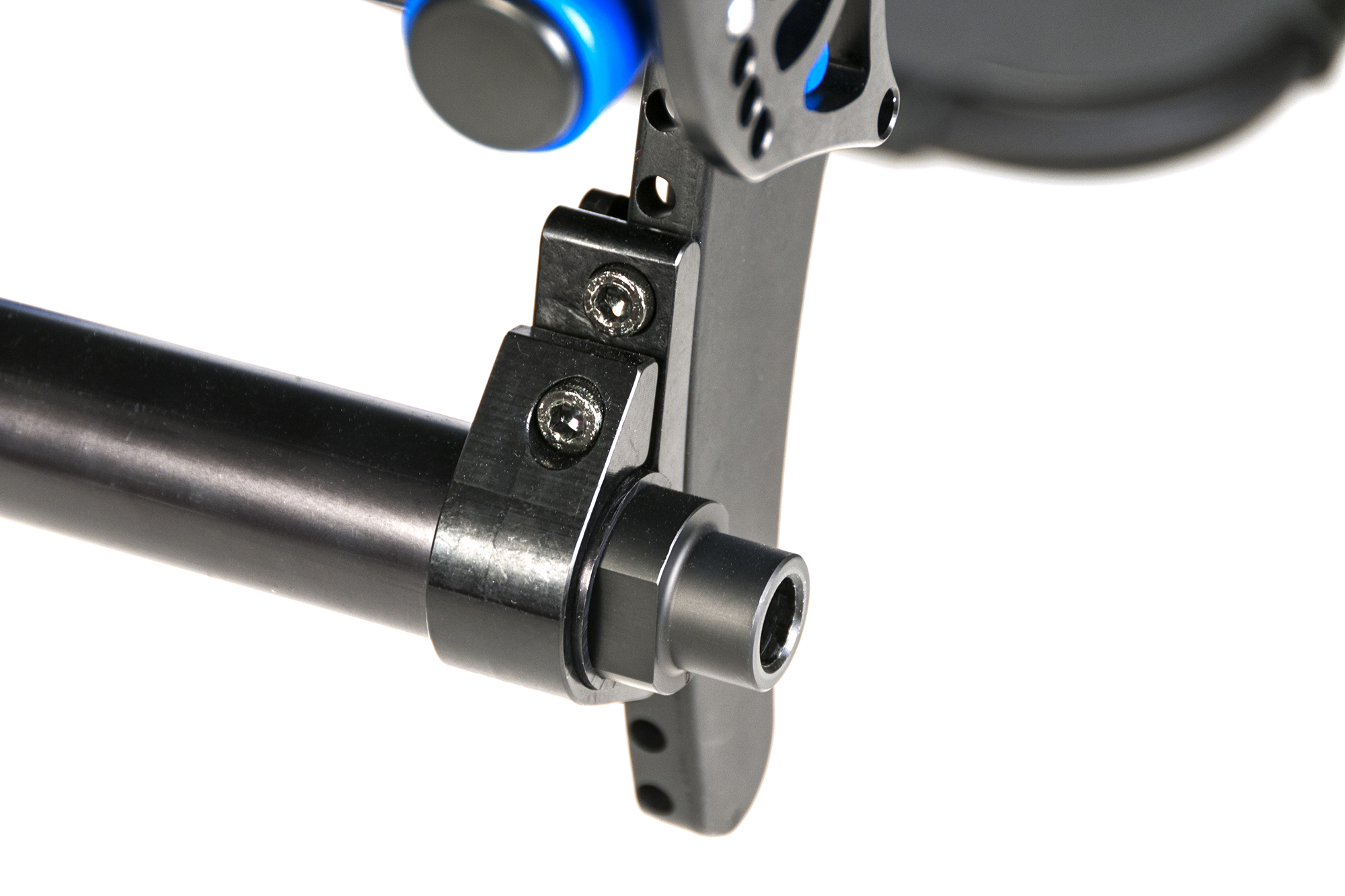

Swept-Back, Highly Adjustable Axle Plate Design

Swept-Back, Highly Adjustable Axle Plate Design

The swept-back axle plate design adds to the 5R's style and features a color window for an extra pop of color on your frame.

But it isn’t just for looks - it is also incredibly quick to adjust. Available in two lengths - short (4.5" of vertical adjustment) and long (6" of vertical adjustment) - this axle plate ensures you are getting the adjustment range you need without adding unnecessary weight.
Access to Premium Options

Access to Premium Options

The 5R offers premium options that can elevate your product.

Choose Topolino Carbon Core wheels at 2.5 lbs. per pair.

Go with the XTR Suspension Frame, Mountain wheels, Knobby tires, and Frog Legs suspension forks for rugged chair performance.

Add the Quickie Xtender motorized wheels to multiply the force you apply to the handrims by four times.
JAY Seating Options

JAY Seating Options

There's no need to sacrifice great seating in the name of ultra lightweight mobility. Choose from JAY's superior cushions and backs to get the most out of your mobility system.

For lightweight skin protection, check out the JAY Lite or JAY X2.

For an incredibly versatile backrest, try the JAY J3 back... and don't forget to have the back shell painted to match or complement your chair at no extra charge.

They're great together.

Pair your 5R with these great additions!

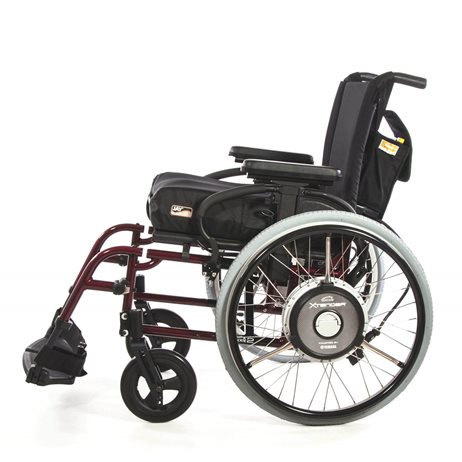

QUICKIE Xtender Manual Power Assist

QUICKIE Xtender®

Go that xtra mile!

JAY Fusion Wheelchair Cushion

JAY Fusion™ Cushion

Adjustable wheelchair cushion optimized for superior skin protection while maximizing stability and comfort

JAY J2 Wheelchair Cushion

JAY J2™ Series Cushions

JAY Flow® fluid and a contoured base wheelchair cushion for outstanding skin protection and stability

JAY J3 Wheelchair back

JAY J3™ Back

The most versatile JAY back for all shapes, sizes, and lifestyles

Specifications

Dimensions
Seat Width:12" to 20"
Seat Depth:12" to 20"
Front Seat-to-Floor Height:16" to 21"
Rear Seat-to-Floor Height:13" to 20"
Tilt Range:N/A
Back Height:10" to 20"
Back Angle Adjustment:Fore (-) 17° to Aft (+) 8°
Lower Leg Length Setting:N/A
Frame Angle:
  • 75°
  • 80°
  • 85°
Camber:
  • 0°
  • 3°
  • 6°
  • Choose between 4° and 8° with XTR Suspension
Center of Gravity (COG) Adjustment:-1.5" to 4"
Shipping Dimensions:31" L x 24" H x 24" W
Product Information
Model Number:EIR10
Performance/Weights
Frame Type:
  • Classic
  • Performance
  • XTR Suspension
  • Depth Adjustable Back
Frame Material:Aluminum
Transit:Yes
User Weight Capacity:265 lbs.
Product Weight:
  • Standard Configuration: 21.5 lbs.
  • Transport: 12.9 lbs.
  • Transport without Wheel Locks: 11.65 lbs.
Average Shipping Weight:50 lbs.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Looking for something else?

Was the 5R not what you were looking for? Check out these similar products.

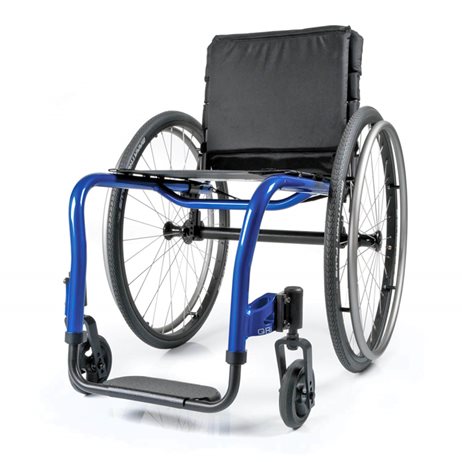

QUICKIE QRi Manual Rigid Lightweight Wheelchair
