J3™ Back Wheelchair Back

The most versatile JAY back for all shapes, sizes, and lifestyles

Find Your Local Dealer
Find Your Dealer

The most versatile JAY back for all shapes, sizes, and lifestyles

The JAY® J3™ wheelchair back product line offers a multitude of width, height, and contour depth back shells to fit the back to the client. Each back is lightweight and adjustable, with numerous hardware choices allowing for easy installation.

Find Your Local Dealer Options and Prices

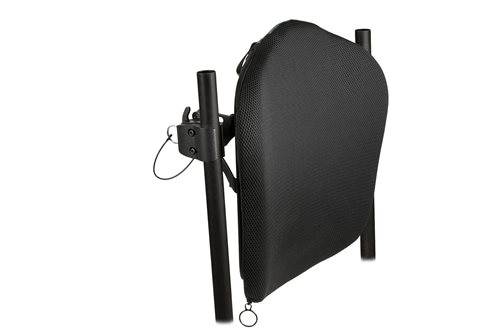

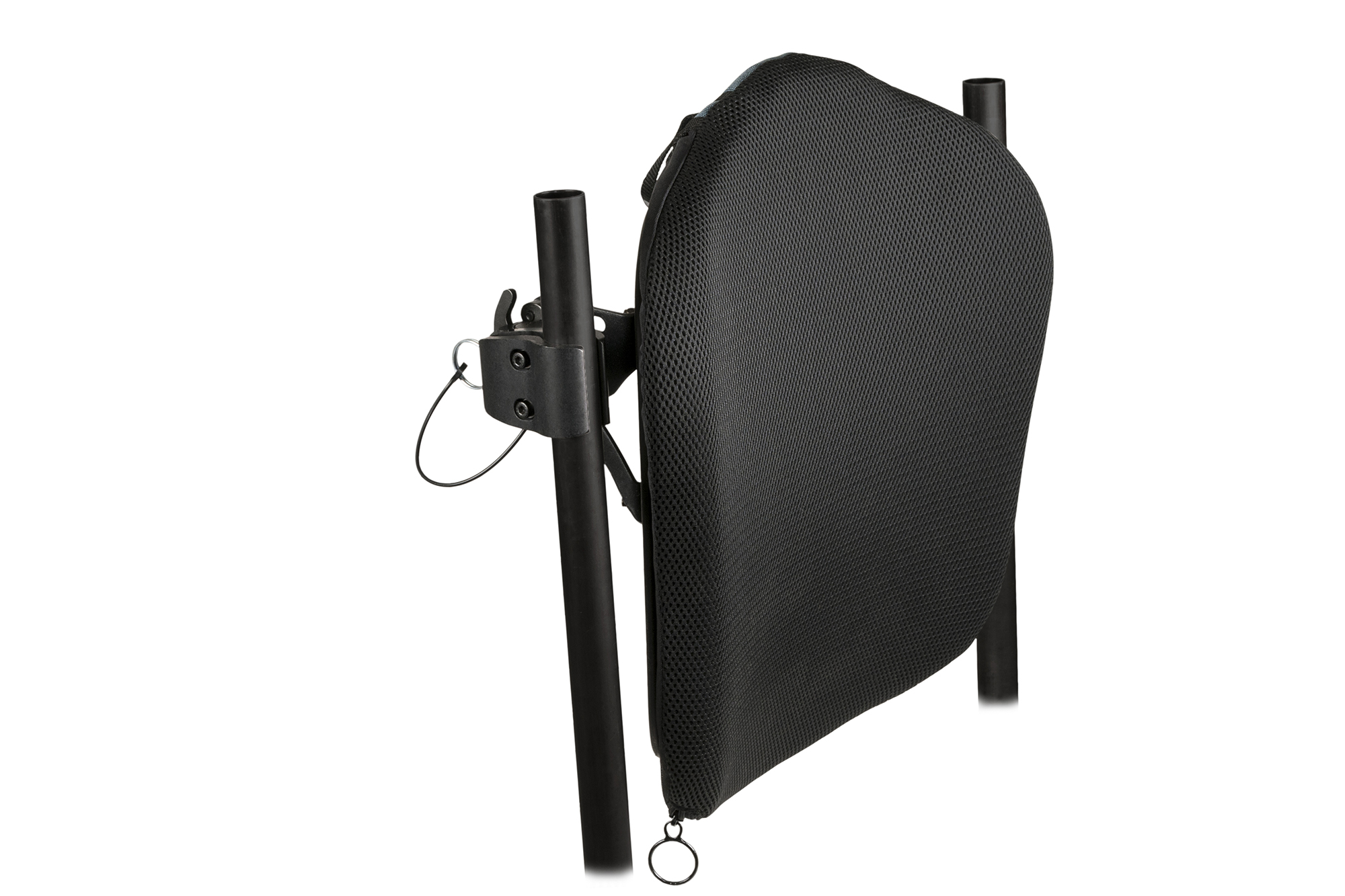

JAY J3 Wheelchair back
New J3 Plus Backrest

New J3 Plus Backrest

Designed to specifically address the pelvic and trunk stability needs of the bariatric client, the new J3 Plus Backrest* features an optional lower vanity shell extension that can pivot to accommodate redundant tissues, allowing proper positioning without interference. Accommodating up to 500 lbs. in widths of up to 26", the J3 Plus Backs are available with either TH 2-point or FS 4-point hardware and features a 2.2" deep contour to provide for non-restricted movement.

* available on the Mid Thoracic shell only.

More sizes. More styles. More wheelchair backs for the perfect fit.

More sizes. More styles. More wheelchair backs for the perfect fit.

The JAY J3's solid shell is now available in four support height levels to provide support for clients with wide ranges of torso heights and levels of injuries. The addition of five new contour shapes also provides posterior and lateral pelvic and lateral thoracic stability to clients with varying postures and functional needs.

  • Posterior (PA) - 2.2" of lateral thoracic support
  • Posterior Lateral (PL) - 3" of lateral thoracic support
  • Posterior Deep (PD) - 6" of lateral thoracic support
  • Posterior Deep Lateral (PDL) - 6" of lateral thoracic support
  • Posterior Deep Contour (PDC) - 6" of lateral pelvic support
  • Lower Thoracic - 6.5" to 9.5"
  • Mid Thoracic - 12" to 15"
  • Upper Thoracic - 16.5" to 19.5"
  • Shoulder - 21" to 24"

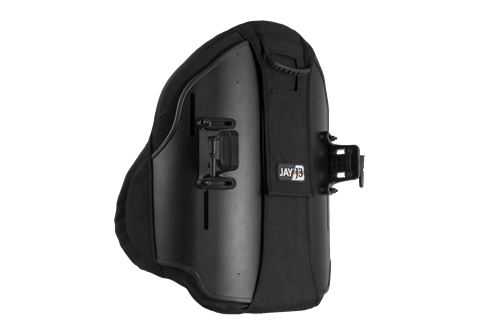

PD Back Now in Over 40 Sizes

PD Back Now in Over 40 Sizes

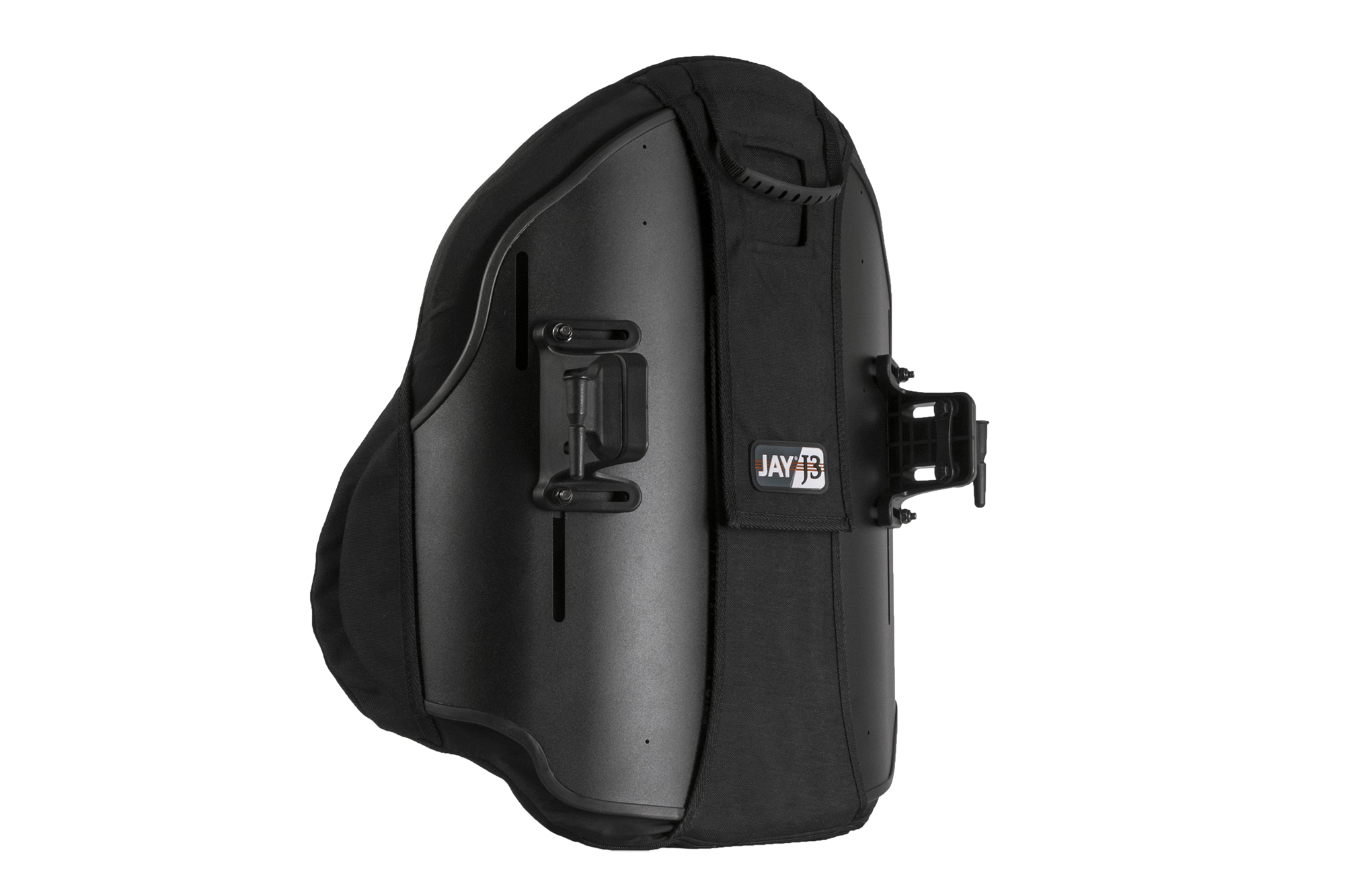

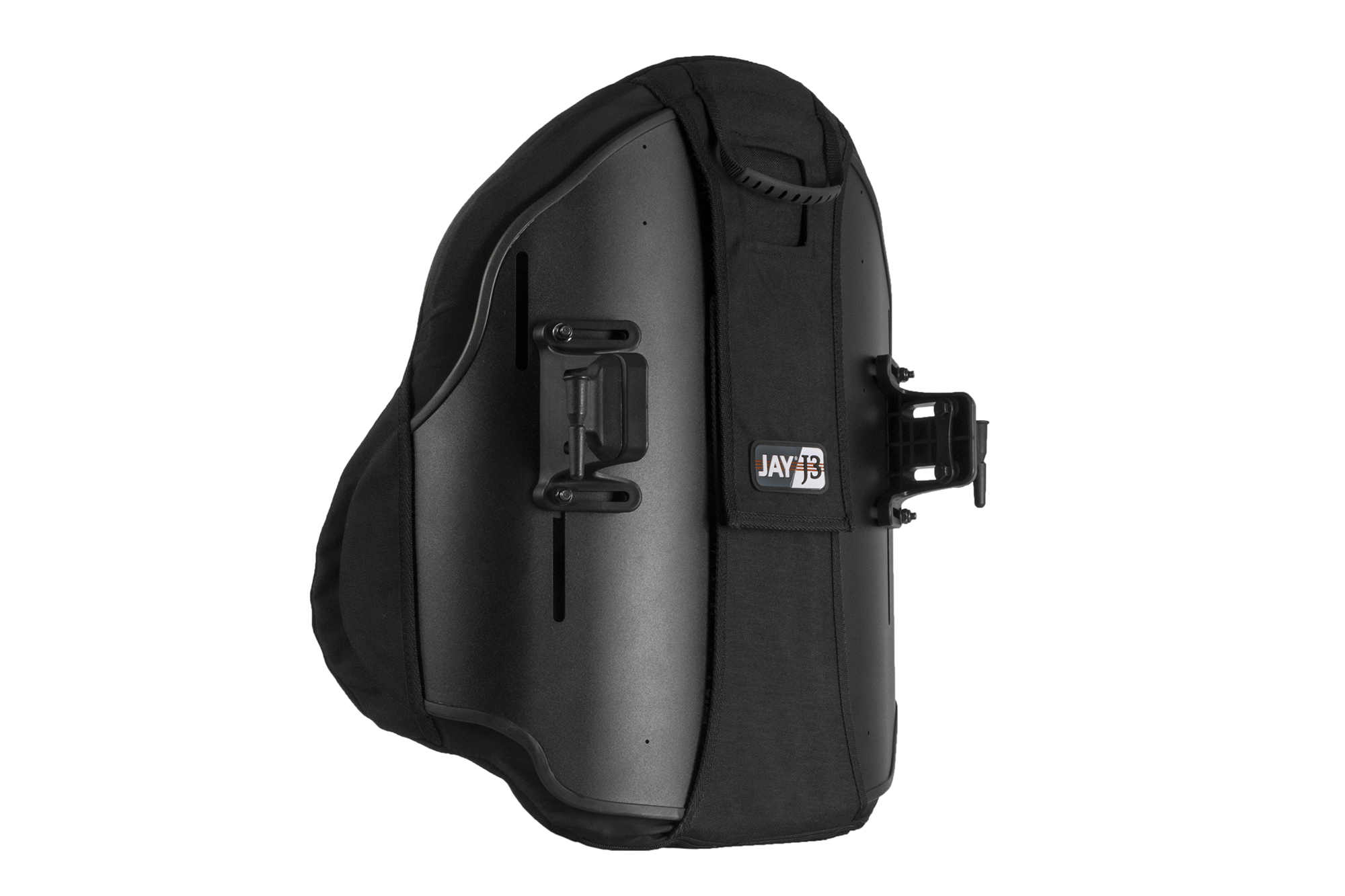

The most popular 6" deep back is now offered in heights from 8" to 24" and widths from 12" to 20". The PD Back provides excellent midline postural support and positioning while the curved 7" tall built-in contoured laterals offer exceptional thoracic stability.

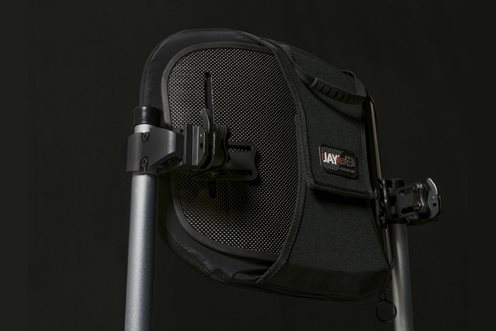

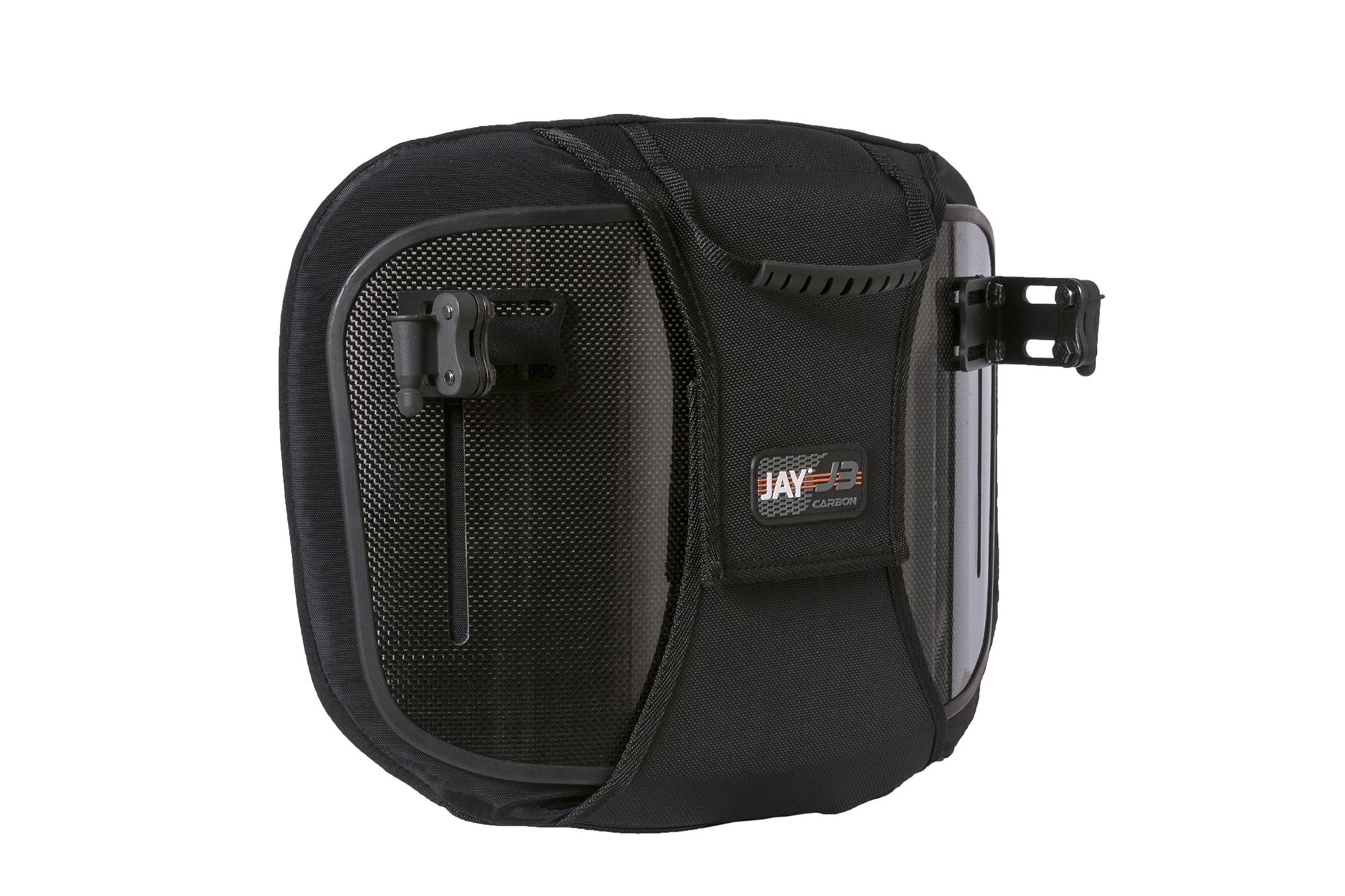

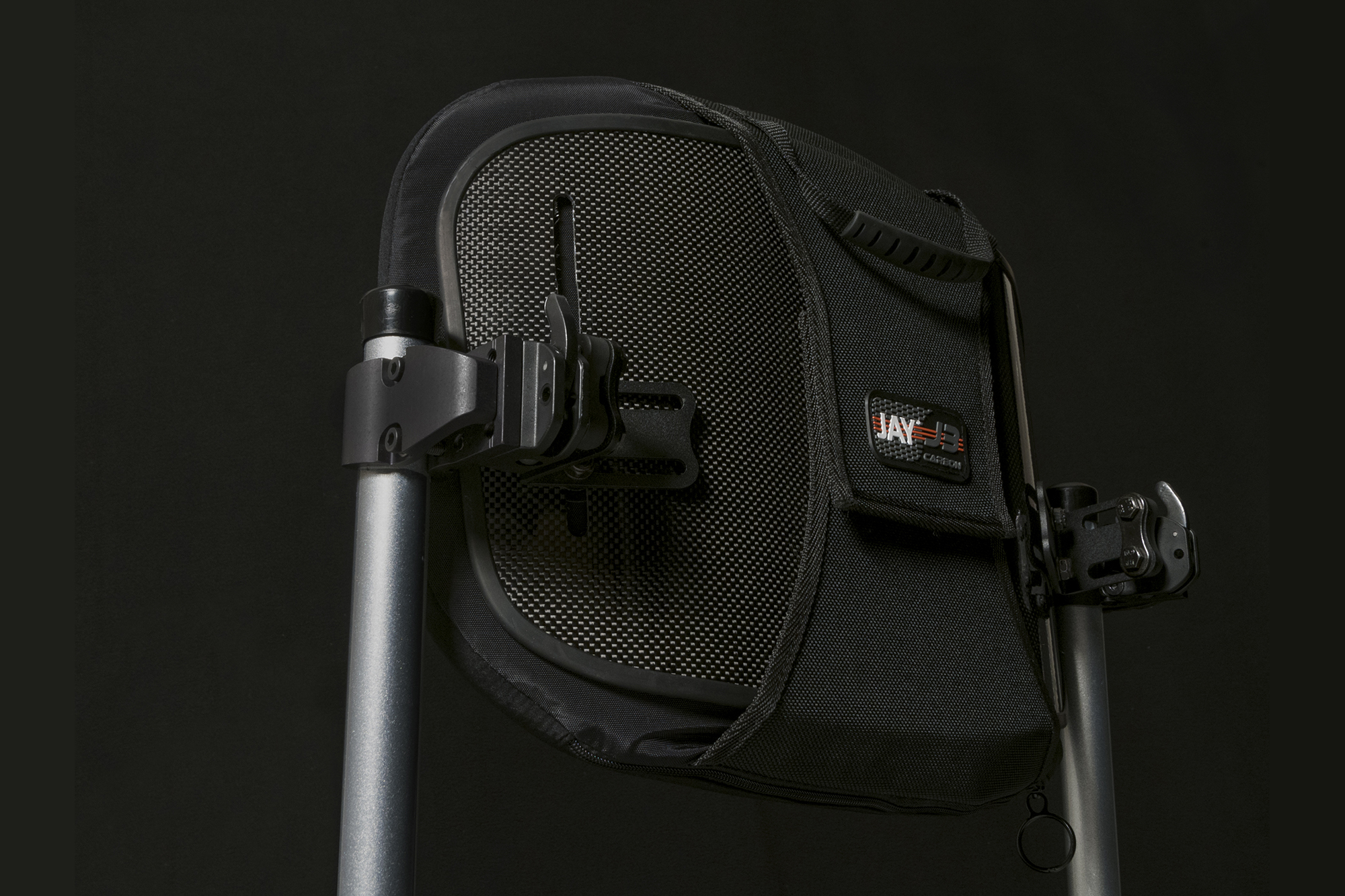

Carbon Fiber Shell

Carbon Fiber Shell

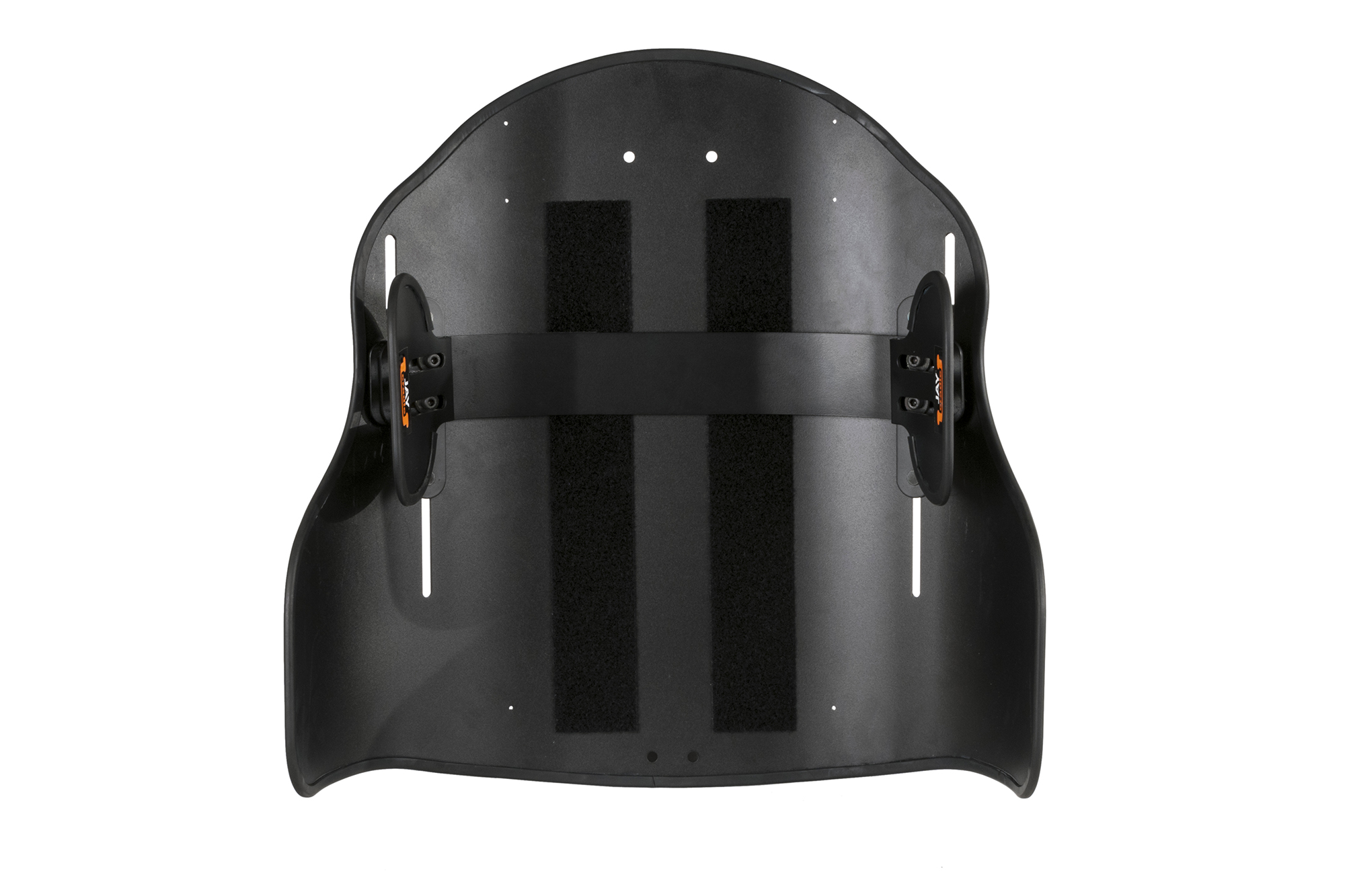

The J3 Back now offers a Carbon Fiber shell option for the ultimate in lightweight performance. Weighing as little as 2.2 lbs. when combined with RH hardware, the J3 Carbon Fiber Back is the perfect addition to any Quickie ultra lightweight wheelchair. The J3 Carbon Fiber Back can also be paired with the Freestyle Backrest System.

They're great together.

Pair your J3™ Back with these great additions!

QUICKIE® SR45 Manual Tilt Wheelchair

QUICKIE SR45®

The simple solution for rotation-in-space wheelchair technology

QUICKIE® IRIS Manual Tilt Wheelchair

QUICKIE IRIS®

The superior standard for rotation-in-space wheelchair technology

QUICKIE 2 Manual Folding Lightweight Wheelchair

QUICKIE Quickie 2 Family

Great Made Greater.

QUICKIE Nitrum Ultra-Lightweight Rigid Wheelchair

QUICKIE Nitrum

Precision-engineered to turn your energy into motion so you can go further, faster, and for longer.

Specifications

Product Information
Dimensions/Weights
Product Height:Lower Thoracic: 6.5", 8", 9.5"
Mid Thoracic: 12", 13.5", 15"
Upper Thoracic: 16.5", 18", 19.5"
Shoulder Height: 21", 22.5", 24"
Product Width:12" to 26"
Product Weight:1.7 lbs. and up (without hardware)
User Weight Capacity:12" to 20" widths: 300 lbs.
22" to 26" widths: 500 lbs.
Product Options
Hardware Options:RH
SH
TH
4-Point
Hardware Angle Adjustability:20°
Hardware Width Adjustability:+2"
Frame Tubing Compatibility:3/4" to 1 1/8"
Headrest Mount Available:Yes
Shell:Lightweight, contoured
Lateral Contour Support:PA: 2.2"
PL: 3"
PD, PDL, PDC: 6"
Insert:1 1/2" soft foam
Outer Cover:Spacer Fabric and Lycra® Stretch Outer Layer
Optional Positioning Accessories:Spine Align Posture Conforming Inserts
Lateral Thoracic Pads
Chest Straps/Harnesses
Whitmyer® Head Supports
JAY Your Way Modifications Available:Yes

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Looking for something else?

Was the J3™ Back not what you were looking for? Check out these similar products.

JAY Basic Back

JAY Basic Back

Solid back support for basic needs

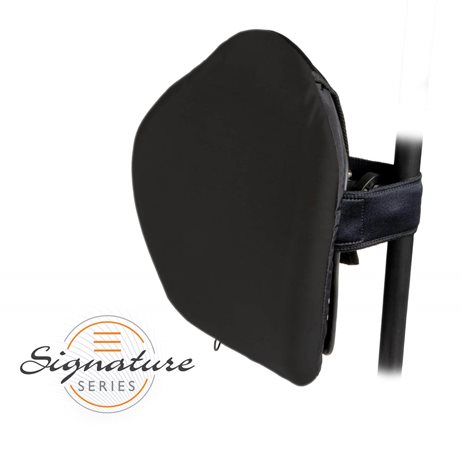

JAY Zip Kids Wheelchair back
