Q500 H Power Wheelchair

A new generation of power wheelchair

Find Your Local Dealer
Find Your Dealer

A new generation of power wheelchair

The QUICKIE Q500 H brings you a unique blend of rear-wheel drive and mid-wheel drive technology, delivering impressive outdoor performance coupled with indoor maneuverability. Bringing you the best of both worlds and exceptional comfort.

Find Your Local Dealer

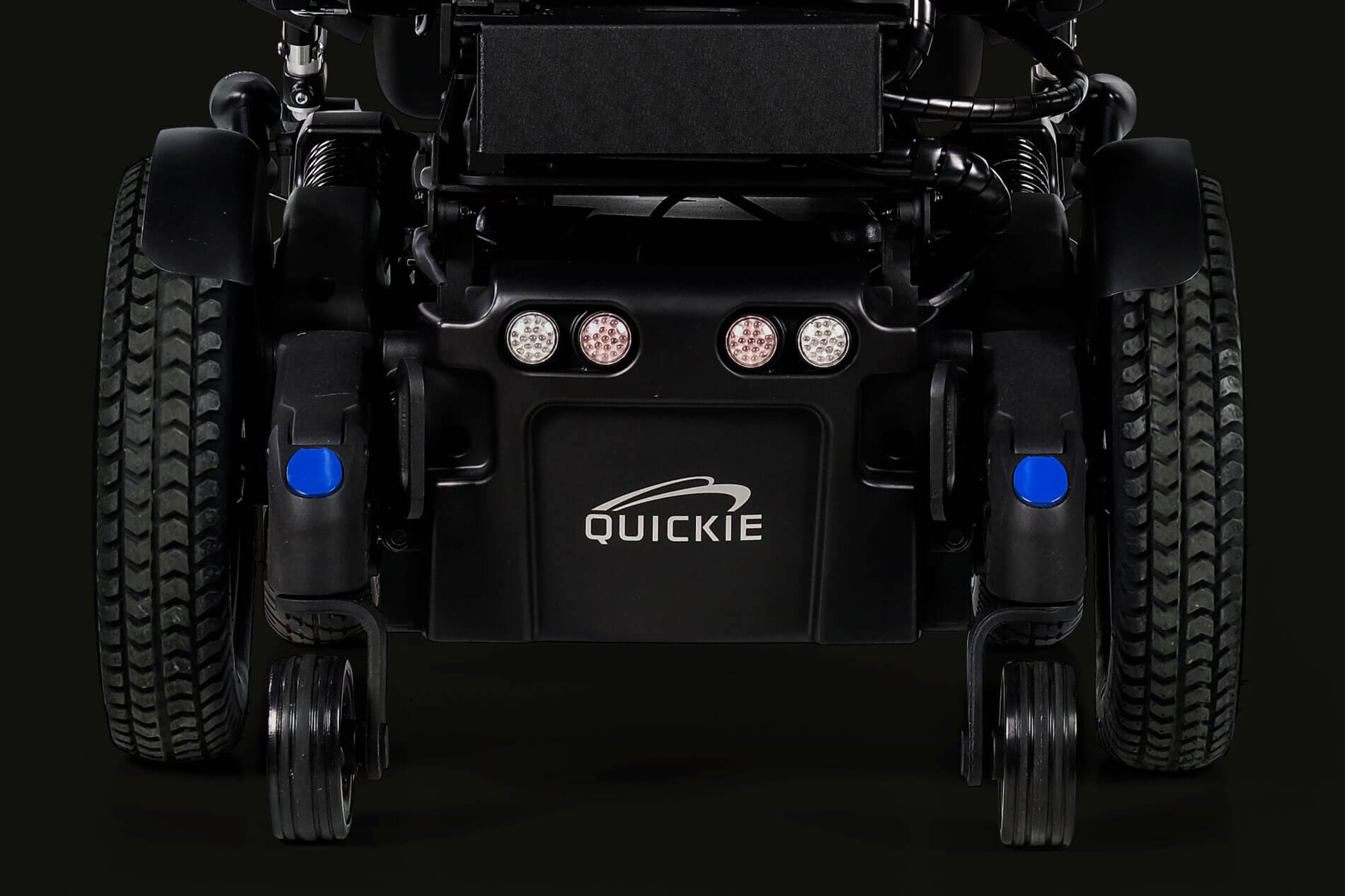

Hybrid-wheel drive base

For the first time, QUICKIE brings you a unique blend of rear-wheel drive and mid-wheel drive technology, delivering impressive outdoor performance with indoor maneuverability and exceptional comfort. All Q500 H bases come with Occupied Transit tie-down brackets as standard, no charge.

The Q500 H's fixed front casters prevent the chair from tipping forward, while the dynamic suspension system keeps both drive wheels and casters in contact with the ground. Intelligent, active anti-tips ensure that all six wheels remain in contact with the ground for enhanced traction and stability.

Unlike conventional rear wheel drive bases, the Q500 H's drive wheel position ensures a smaller turning radius for increased indoor maneuverability without compromising stability and outdoor performance.

The innovative, dynamic suspension system actively absorbs impacts over thresholds and uneven terrain to enhance ride comfort & seat stability, reduce fatigue, and ultimately extend the time a user can sit in the chair.

The large front casters not only provide a more stable ride, but they allow greater ability to climb obstacles. Additionally, these large casters absorb more impact, giving you both performance and a smoother ride.

Hybrid-wheel drive base

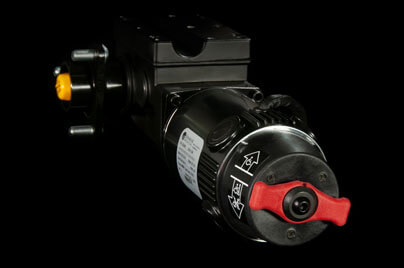

QUICKIE Motor Technology

Our robust motor technology can't be easily duplicated anywhere else. That's because we've spent years working closely with our manufacturer to develop a longer-lasting, highly efficient motor with improved performance, drivability, and range.

Engineered for optimal driving performance

Quickie Motor Technology

We know that more time is spent maneuvering around a home and workplace versus traveling long distances. That's why we've designed our motors to give you the control you need in small spaces without sacrificing the power you want to tackle obstacles. Plus, you'll be able to drive 10% further on the same battery capacity. Similar to a car driving on the highway versus in the city, don't sacrifice performance in places where it's needed the most.

Reduced thermal rollback

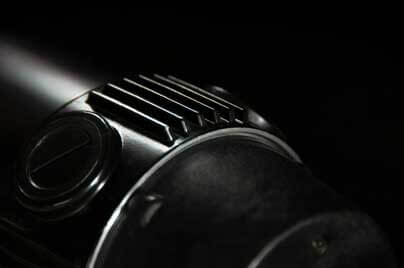

Cooling fins

The larger fins found on our motors aren't just a stylish design feature. Larger cooling fins enable heat to escape more effectively, reducing your risk of thermal rollback so you can drive 25% further and faster when combined with the additional boost, even when on an incline or faced with uneven surfaces.

Equipped with 10 seconds of power boost

Power Boost

Overcoming obstacles like steeper inclines and even door jambs gets easier with our controller and motor combination. These two systems work together to provide you with an additional 10 seconds of boost for that extra power whenever you need it.

Designed to last

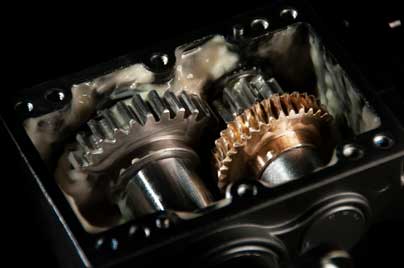

Metal gears

Unlike some of our competitors, QUICKIE motors feature metal gears instead of plastic. Polished for low noise and high efficiency, our all-metal gears exceed expectations in tough conditions. We go the extra step in polishing those gears because we believe that a little extra effort goes a long way in creating a better ride.

QUICKIE Motor Technology continually exceeds rigorous testing standards. With a proven 99% success rate, your ride will be unlike any other. QUICKIE 4-pole motors generate 18% more power than previous generations.

Q500 H Seating System Comparison

The QUICKIE Q500 H is available with two distinct seating systems: the versatile SEDEO PRO and the comfortable Captain's Seat.

SEDEO PRO Captain's Seat
Clinical Need Medium to High Low
Cryo fluid (available only on Syncra seating) ✔ -
Power Recline w/ 4" of Shear (150°) ✔ -
Semi Power Recline Option (130°) ✔ -
Manual Recline Option ✔ ✔
Power 50° Center Gravity Tilt* ✔ ✔
Power Legrest ✔ ✔
12" Elevate* ✔ ✔
Seat Width 16" - 22" 16", 18", 20"
Seat Depth 16" - 22" 16" - 22"
Backrest Height 21" - 30" 25"
Learn More Learn More

* Elevate is not available with tilt

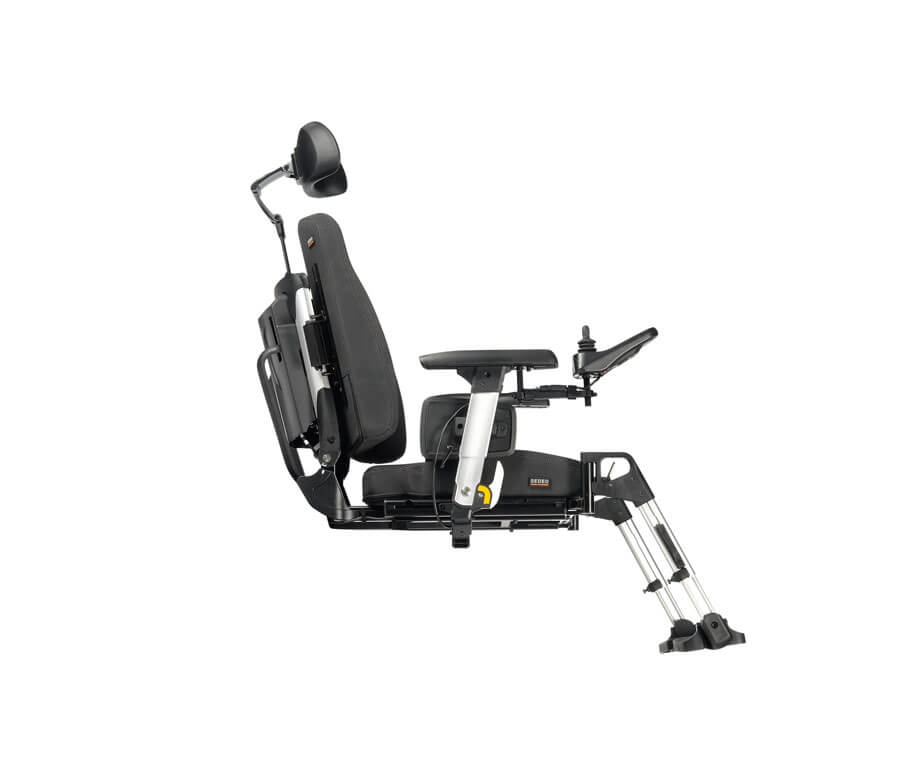

The SEDEO PRO seating system combines a highly adjustable and configurable seating frame with an excellent choice of support options, including a wide range of SEDEO PRO seat cushions and backrests for mild to medium clinical needs. The SEDEO PRO is very comfortable to use and enhances user independence in everyday life.

  • A variety of backrest options are available for the SEDEO PRO seating system. The 150° powered recline backrest offers 4” of anti-shear, making sure to minimize the sliding between you and the cushion.

    • Fixed backrest
    • User-adjustable manual semi-recline backrest
    • 130° powered semi-recline backrest
    • 150° powered recline backrest with 4" shear reduction

  • The easy-to-operate flip-back armrest gives you unencumbered transfer space. Choose from a removable or reclining version (reclining shown right).

    Also available: single-post removable armrest. All are compatible with four armpad options.

  • Adjust seat depth and width, backrest angle and height, legrest angle, lower leg length, armrest height and depth, and headrest height. These adjustment options give you total flexibility and can be done quickly and easily, creating the right seating posture for you. All with one tool allowing for easy customization in case of changing requirements.

  • The SEDEO PRO offers an excellent choice of options to create the perfect fit for the user. With four backrest types, four armrest types, five legrest types, and a wide range of seat & back cushions, headrests, and positioning options. It can be easily customized to suit individual requirements and quickly adapted to changing needs.

  • The SEDEO PRO offers a full array of footrest options. You can choose a power elevating and articulating leg rest which allows for optimal positioning and comfort. Power elevating leg rests are available as a swing-away option. Alternatively, you can also choose a manual elevating swing-away leg rest or traditional fixed angle style.

  • Many positioning elements are available like SEDEO headrests & WHITMYER headrests, swing-away lateral thoracic supports, thigh supports, or knee supports.

    All positioning elements are swing-away or easily detachable.

Syncra Seating

JAY® Syncra™ is a cohesive and attractive seating system specifically designed for optimal performance with tilt and recline. Syncra has a width- and height-adjustable back, a cushion that fits mild to complex seating needs, and positioning accessories for support and stability. Learn more in the Syncra brochure.

JAY® Syncra™ featuring CryoFluid™ is the optimal seating system for power wheelchair users who have a history of pressure injuries. Learn more about Cryo Technology.

JAY & WHITMYER Seating and Positioning Options

A wide range of JAY cushions and backs & WHITMYER headrests are available with the Q500 H to meet all of your clinical needs.

Find out more

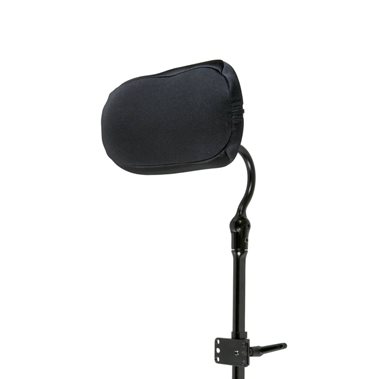

JAY Whitmyer PLUSH Head Support

PLUSH

Curved, single pad headrest for posterior head support

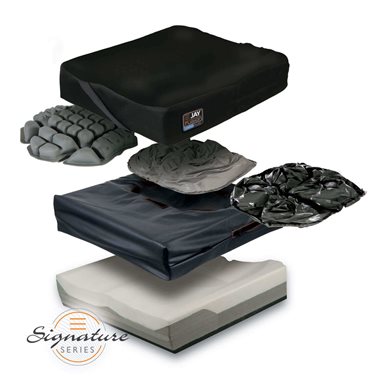

JAY Fusion Wheelchair Cushion

Fusion™ Cushion

Wheelchair cushion that combines the J2's skin protection capabilities with the J3's maximum stability

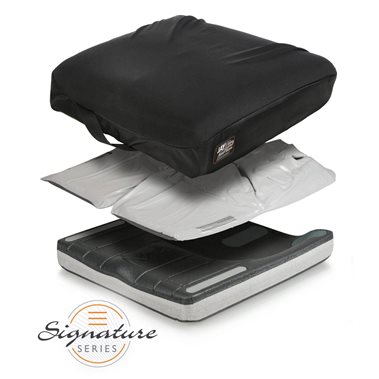

JAY J2 Wheelchair Cushion

J2™ Series Cushions

JAY Flow fluid® and a contoured base wheelchair cushion for outstanding skin protection and stability

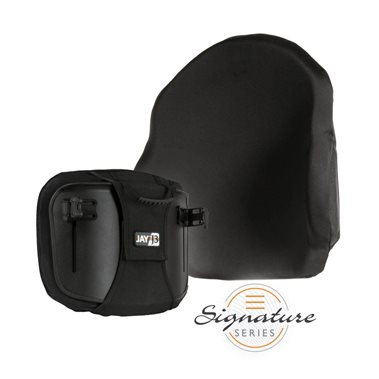

JAY J3 Wheelchair back

J3™ Back

The most versatile JAY back for all shapes, sizes, and lifestyles

Control at Your Fingertips

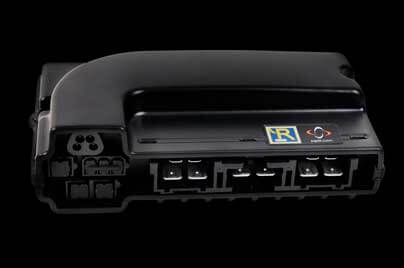

Control your environment with the Q500 H and its advanced controller technology. Available with the reliable VR2 control and the superior R-Net advanced joystick, the large, easy-to-read color display and simple-to-control paddle switches allow for intuitive operation.

CONNECT

Seamlessly take control of your environment using the integrated infrared functionality. Control your TV, docking stations, and other home entertainment systems easily via your joystick.

BLUETOOTH®

Control your phone, computer, tablet, and any other Bluetooth® devices, compatible with Android™ and Apple® iOS devices from your Q500 H power wheelchair with this useful optional extra. Connect and control up to four devices.

QUICKIE-PATENTED ASSIGNABLE BUTTONS

Change the function on any button on your joystick to any command you desire thanks to QUICKIE's patented assignable buttons. You can also assign a second (long press) function to buttons for quicker, simpler, and smoother access to commonly used functions without having to use your joystick.

SWITCH-IT Specialty Controls

If driving with a traditional joystick is not the best option, alternative drive controls allow you to fully experience your Q500 H power wheelchair's driving capabilities and benefits.

Find out more
Switch-It MicroGuide

MicroGuide

Light-touch proportional control

Switch-It VersaGuide EZ

VersaGuide EZ

Light-touch compact proportional control

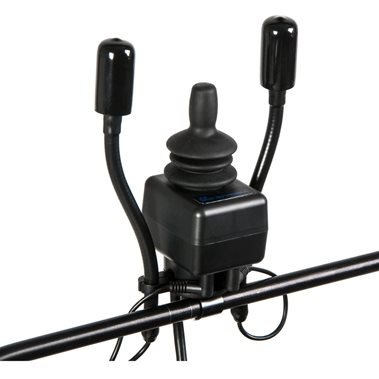

Switch-It VersaGuide

VersaGuide

Compact proportional control

Switch-it Dual Pro

Dual Pro™

Truly proportional head array for intuitive driving

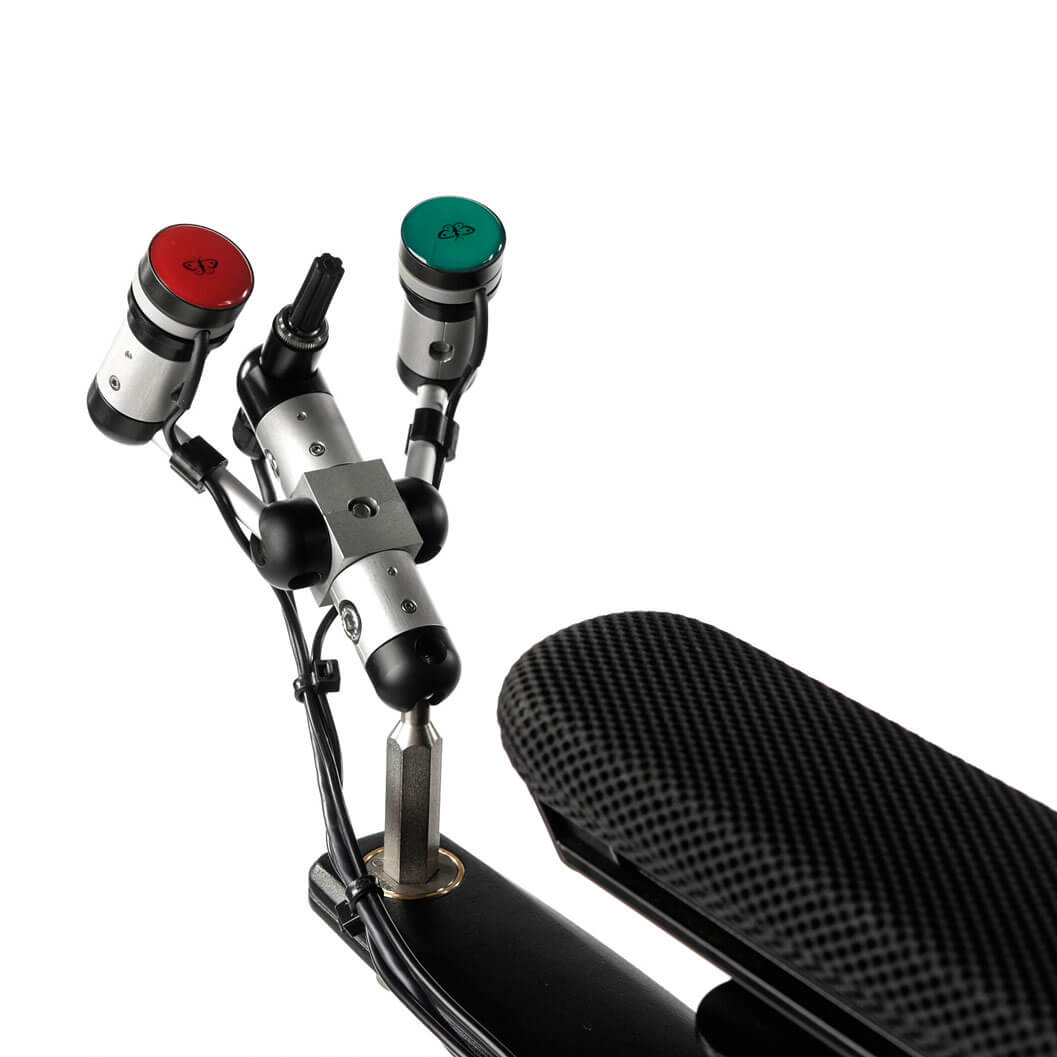

Link-It Mounting System

Link-It Mounting System

Need to use additional switches or specialty controls? Easily connect them using the universal Link-It® Mounting System. Using a combination of available modules and rods, create endless combinations. It's easy to position and ensures your wheelchair maintains its sleek look. Whether it's an extra controller on the armrest, a push button on the backrest, or a switch on the headrest, just link-it.

Specifications

Dimensions
Product Width:24.5"
Product Length:36"
Seat Width:16" to 22"
Seat Depth:14" to 22"
Pre-Set Seat Frame Angle:
  • 0°
  • 3°
  • 6°
  • 9°
Seat-to-Floor Height:16.5" to 19"
Back Height:21" to 30"
Turning Radius:25.5"

(excludes footplates)

Ground Clearance:3"
Product Information
Model Number:EIPW32
Warranty:Lifetime Limited
Performance/Weights
Max. Range:Up to 17.7 miles

(w/Group 24 batteries)

Max. Speed:
  • 6 mph (standard)
  • 5 mph (optional)
  • 8 mph (optional)
Battery Size:
  • Group 24
  • Group 34
Drive Wheel Position:Rear
Suspension:6-wheel independent suspension
Wheel Options:Drive Wheels
  • 13"
  • 14"

Casters
  • Front: 9"
  • Rear: 4"
Transit:ISO 7176-19:2008 Transit Approved
User Weight Capacity:
  • 300 lbs.
  • HD: 350 lbs.
Product Weight:
  • NPC: starting at 343 lbs.
  • SPC: starting at 367 lbs.
  • MPC: starting at 381 lbs.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
