VersaGuide

Compact proportional control

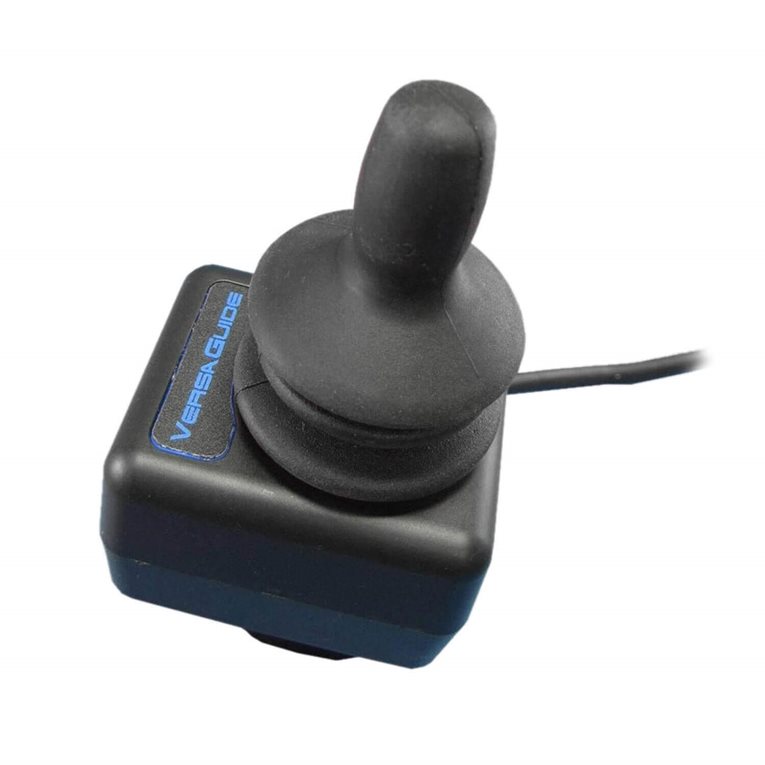

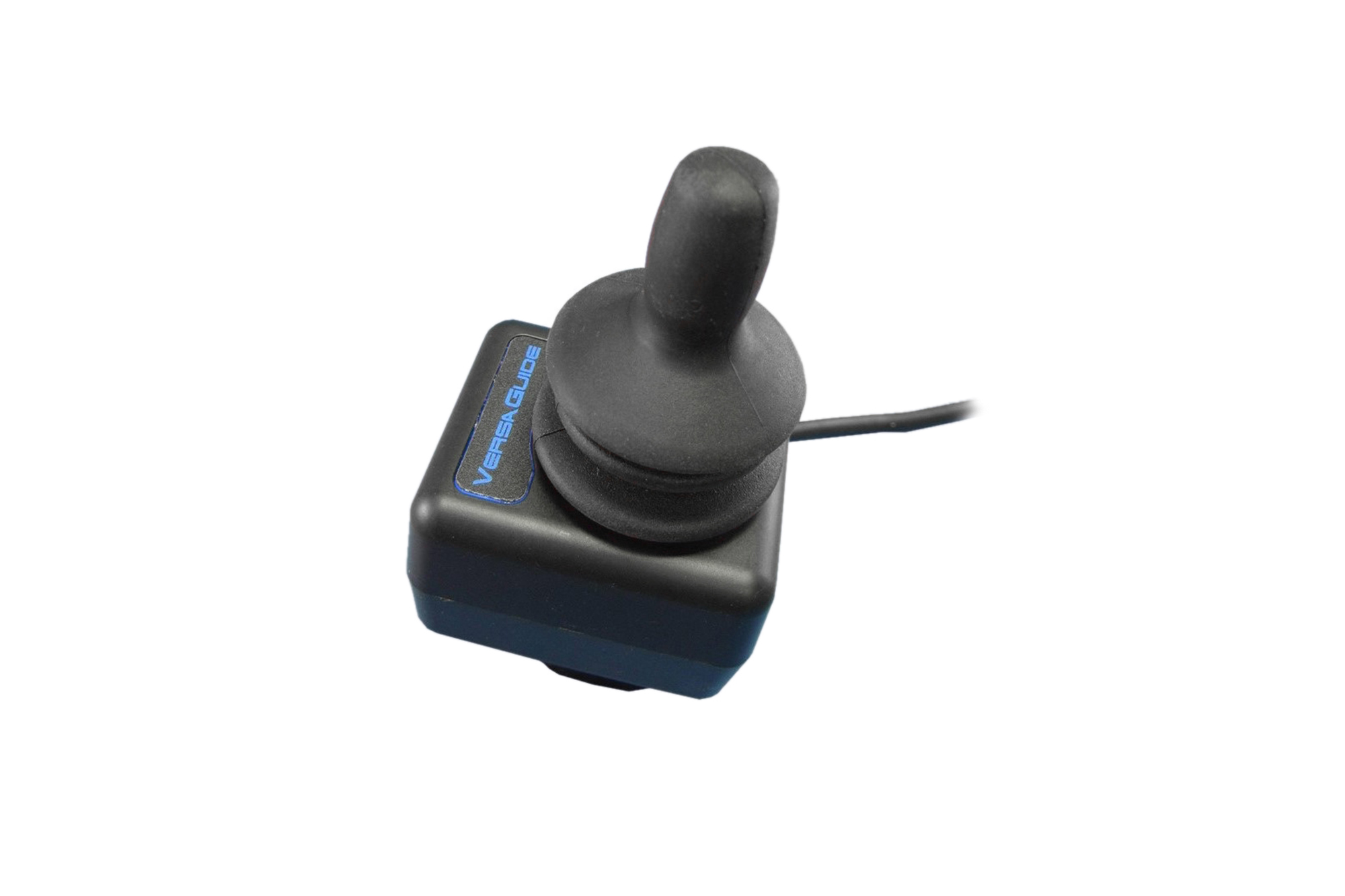

The VersaGuide is a fully proportional and durable compact joystick that can be mounted virtually anywhere. Its unlimited mounting options are what give the versatile VersaGuide its name. The VersaGuide provides for proportional control (forward, reverse, left, and right). The VersaGuide provides two built-in connections for mode and on/off on the underside of the joystick, called SmartJacks, which are unique to the VersaGuide. The SmartJack sensor input will automatically adapt to both proximity and mechanical switches.

Find Your Local Dealer Options and Prices
Switch-It VersaGuide
Flex Switches

Flex Switches

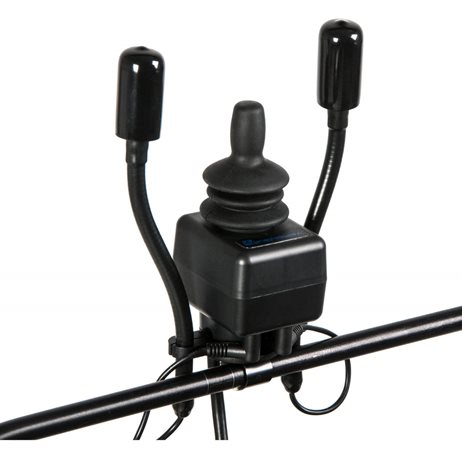

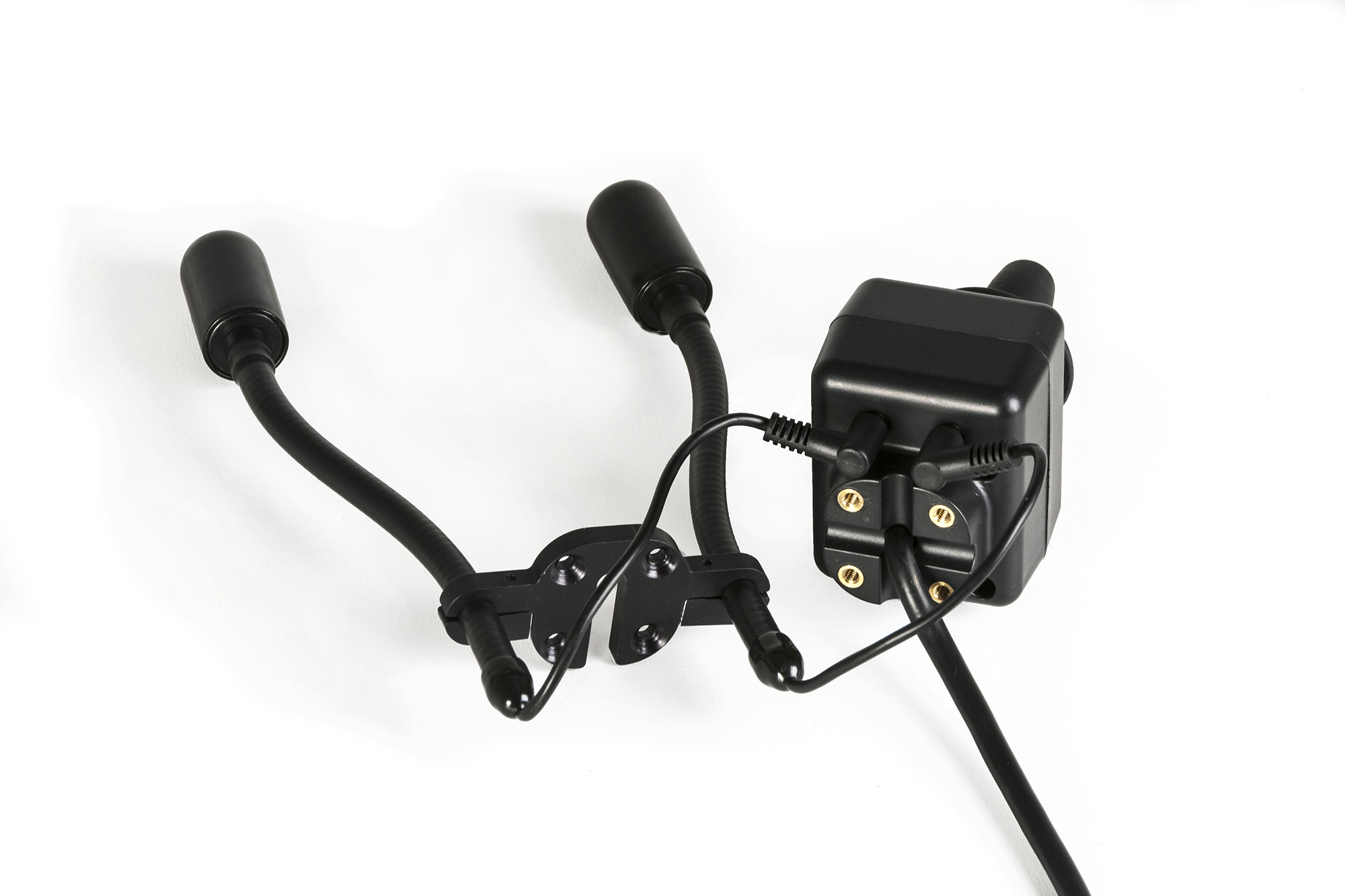

Zero-touch proximity sensors mounted in a flexible gooseneck are available for use with the VersaGuide and plug directly into the SmarkJacks located on the underside of the VersaGuide.

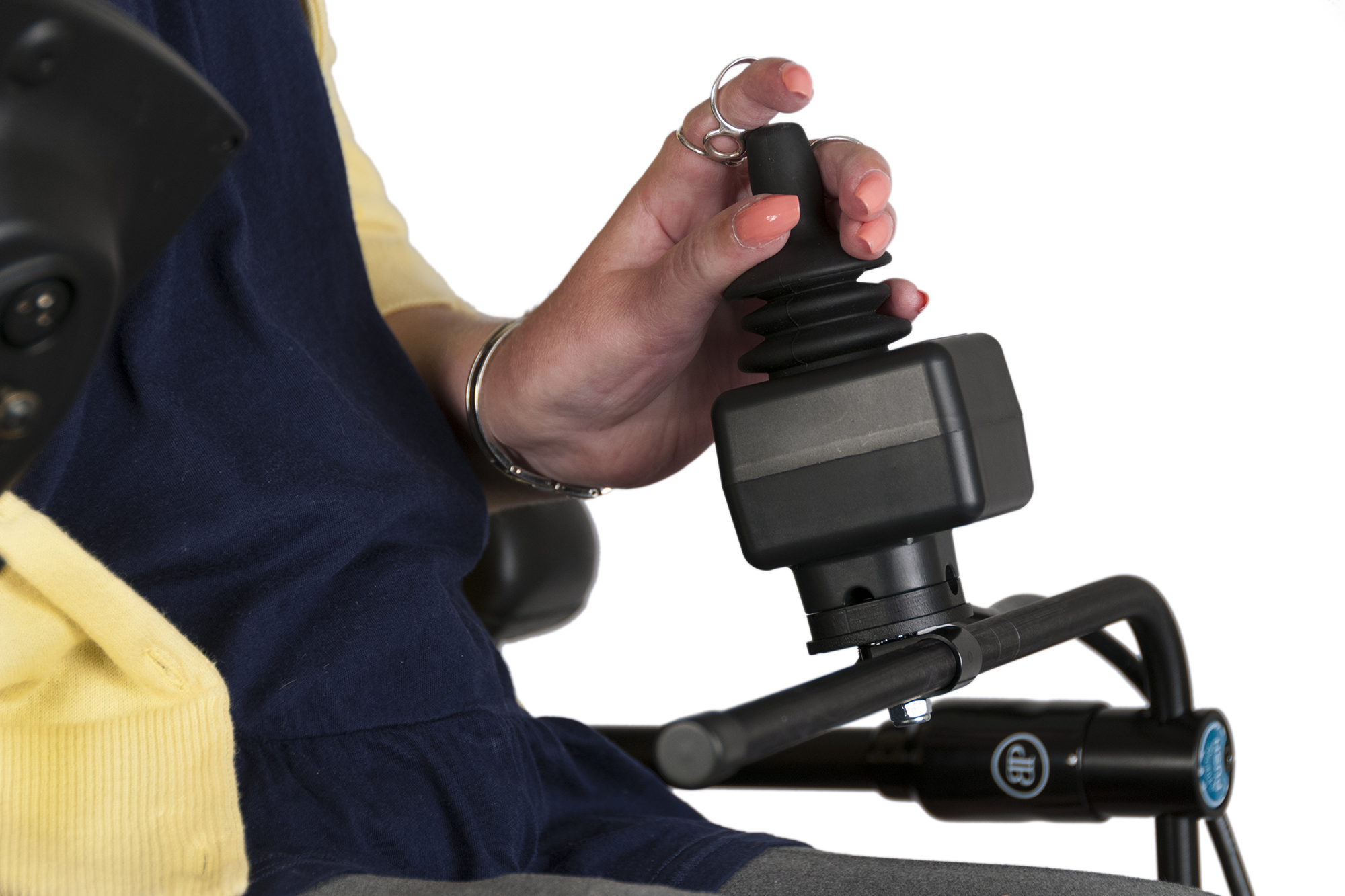

Armrest and Midline Mount

Armrest and Midline Mount

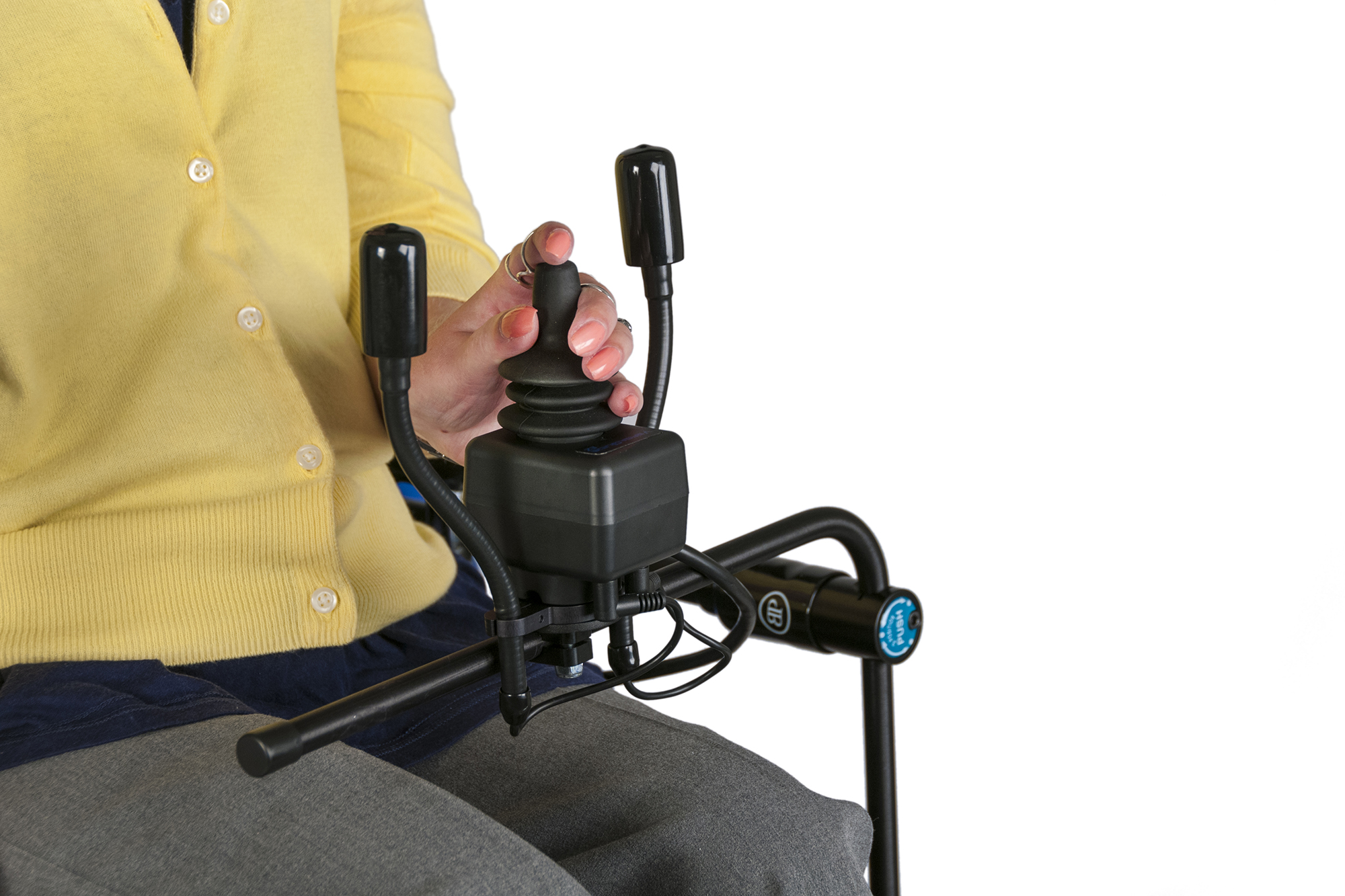

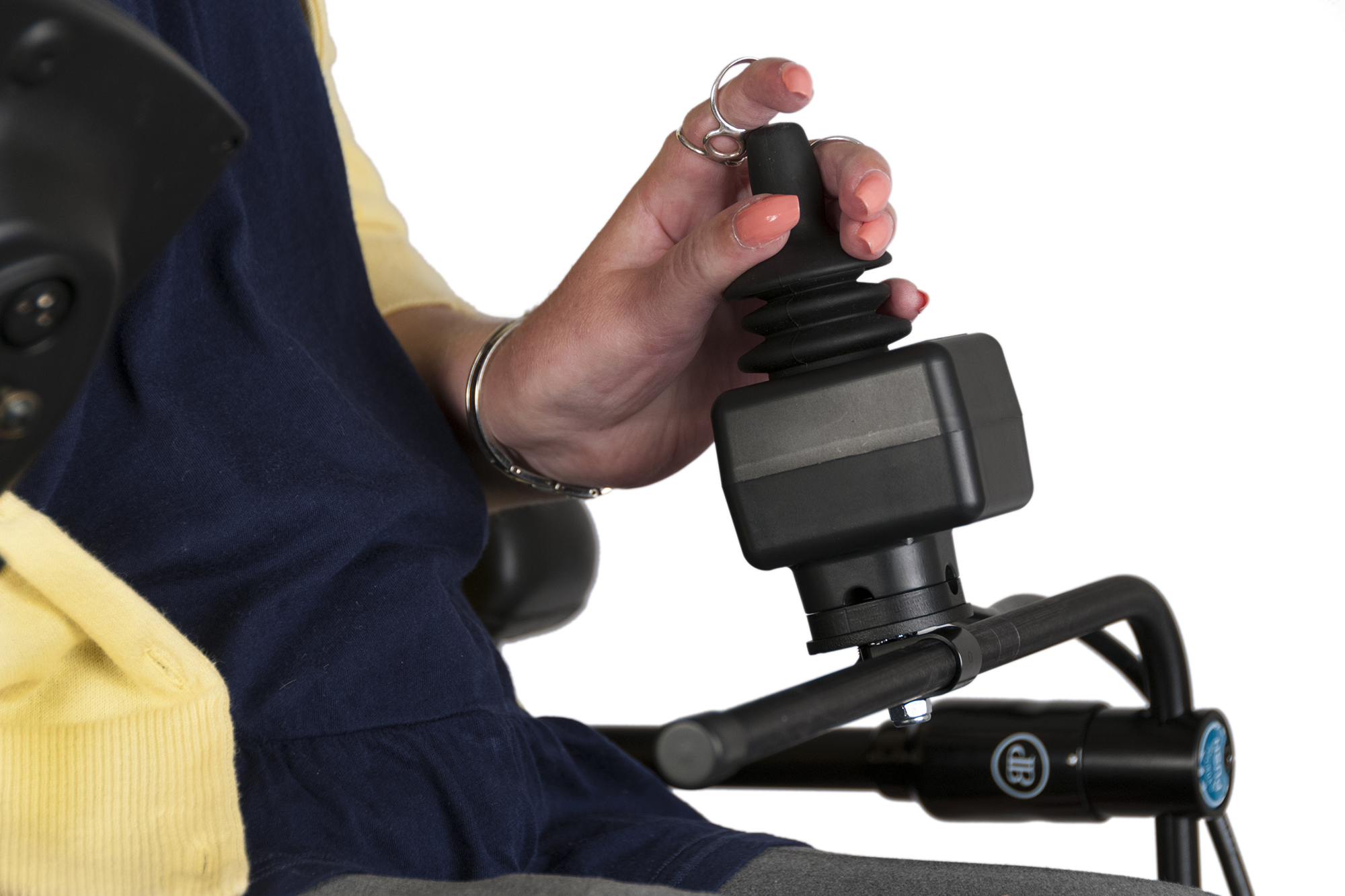

The VersaGuide easily mounts off the armrest or in the midline position. The SpaceDisk hand tray can be modified to fit the VersaGuide and VersaGuide EZ. Active Controls Mounting System for VersaGuide and VersaGuide EZ is also available.
Chin/Mouth Control Mount

Chin/Mouth Control Mount

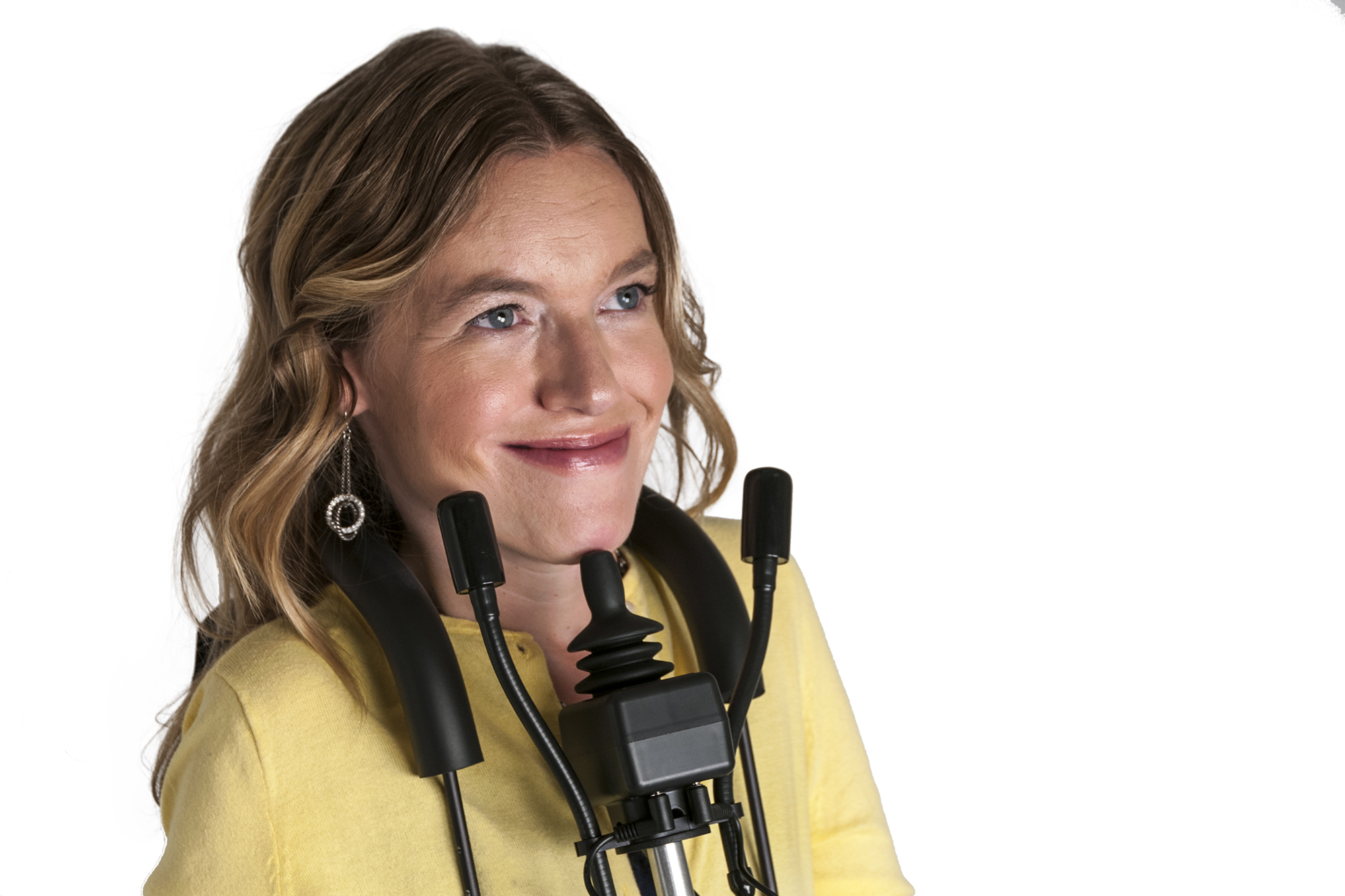

The BDN3 is a mounting platform for wheelchair controllers. The BDN3 goes around a user's neck and gives them the ability to use their chin, lips, or tongue to control their powered wheelchair. The mounting position is not dependent on the user's position in relation to the wheelchair as it is mounted to the user, but rather moves with the user. The system comes with a comfortable foam neck pad which makes the harness comfortable.



The BDN3 is available in two sizes: standard at 6" wide, and large at 8" wide. The BDN3 is simple to remove for ease of transfers. Therafin and Stealth Bibs also available.

Swing-Away Chin Boom

Swing-Away Chin Boom

The Swing-Away Chin Boom is a long L-shaped rod with a clamp to mount the VersaGuide. The chin boom mounts to the back of the headrest. This setup provides the user with chin or mouth control without wearing a harness, and provides for easy transferring of the user.

They're great together.

Pair your VersaGuide with these great additions!

QUICKIE Q700 M

QUICKIE Q700 M

Newly redesigned!

QUICKIE Q500 M

QUICKIE Q500 M

Make your own adventure

QUICKIE Q700-UP M Standing Power Wheelchair

QUICKIE Q700-UP M

Providing the highest performance and most intelligent seating technology of all our QUICKIE power wheelchairs. Whether you want to drive off-road, at home, round the shops, lie flat or stand, the Q700-UP M enables you to do all this and much more.

QUICKIE Q300 M Mini Power Wheelchair

QUICKIE Q300 M Mini

The ultra-compact (20.5" width) power wheelchair that's packed with BIG performance.

Specifications

Dimensions
Dimensions:
  • Diameter Housing: 2.59" L x 2.14" W x 5" H
  • Overall Height: 5"
  • Stem Diameter: 0.25"
  • Travel Before Activation: 22°
Product Information
Model Number:VG
Performance/Weights
Alternative Control Type:Proportional
Activation Type:Displacement Joystick
Activating Force:240g
Feedback:Displacement/Movement of Joystick Knob
Connector:DB9 Connector to Wheelchair Omni or Enhanced Display
Compatibility:
  • Penny and Giles R-Net (Omni Display from wheelchair manufacturer is required)
  • Quantum Q-Logic electronics (Enhanced Display from wheelchair manufacturer is required)
  • Not compatible with Invacare electronics
Mode Switch Inputs:
  • Dual Proximity Flex Switches (recommended)
  • Mechanical switches (i.e., Egg Switch, MicroLite, Piko) into Omni or Enhanced Display
  • Fiber optic systems (1FBOS, 2FBOS)
Mounting Options:
  • Armrest Mount
  • Midline Mount
  • BDN3 Chin Mount
  • Swing-Away Chin Boom Mount
  • BulletTray and SpaceDisk Hand Trays Active Controls Mount
  • Adaptive Mounting Available

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Looking for something else?

Was the VersaGuide not what you were looking for? Check out these similar products.

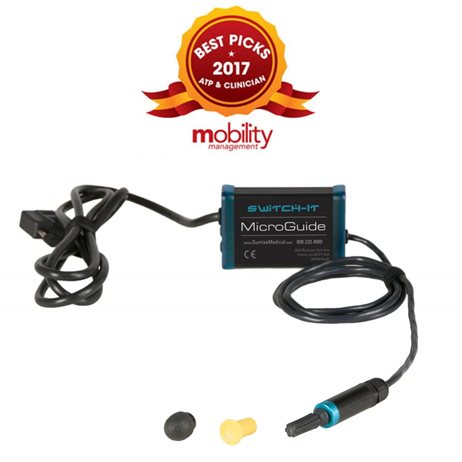

Switch-It MicroGuide
