Swing-Away Lateral Thoracic Supports

Improving trunk control and lateral stability to help maintain proper posture.

To enhance lateral support beyond the depth of a JAY back, the JAY Swing-Away Lateral Thoracic Supports can be added. These are designed for riders who may have a postural tendency to lean towards the side and respond positively to having extended support. Two styles are available to meet specific needs. The standard JAY Swing-Away Lateral Thoracic Support provides additional depth where it is placed on the JAY back support. The Rotational style will pivot to an angle that can better match a body curve, providing surface area support exactly where needed. Three points of control at the trunk and pelvis can assist with providing the forces needed to assist with postural support.

Find Your Local Dealer Options and Prices
JAY Swing-Away Lateral Thoracic Supports

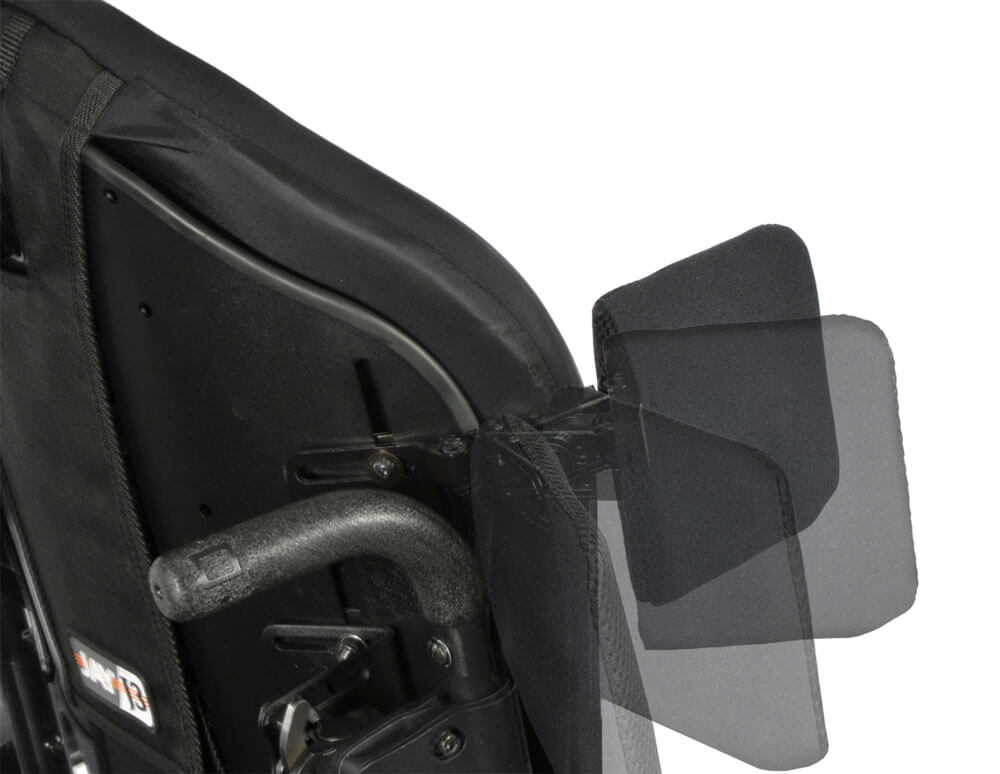

Versatile positioning

Versatile positioning

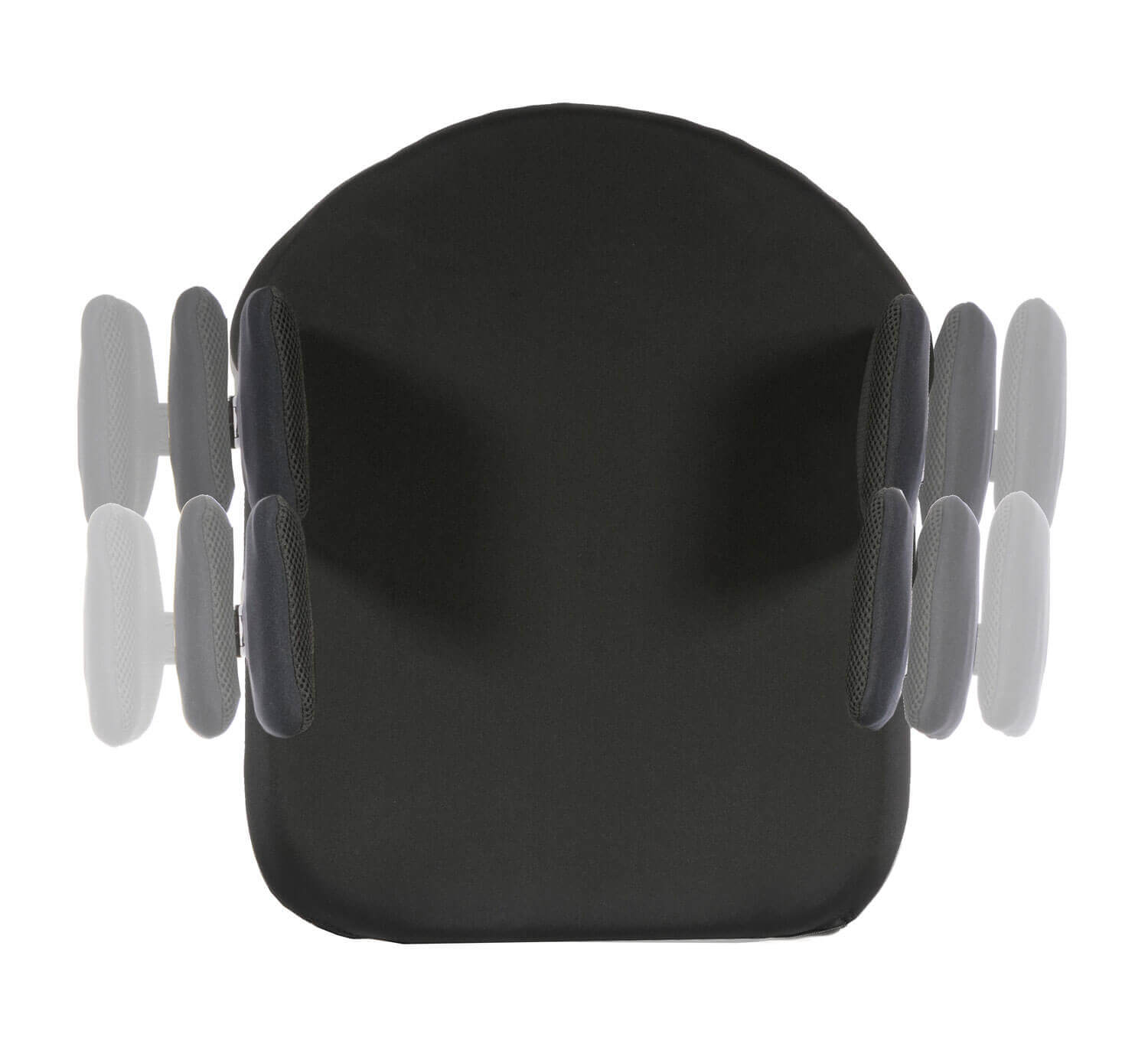

The JAY Swing-Away Lateral's slim profile allows it to be mounted either internally or externally on the shell to create a personalized fit. It's available with a variety of lateral pad sizes and longer slots on the pad brackets for flexibility in pad placement.

JAY Rotational Swing-Away Lateral Support

JAY Rotational Swing-Away Lateral Support

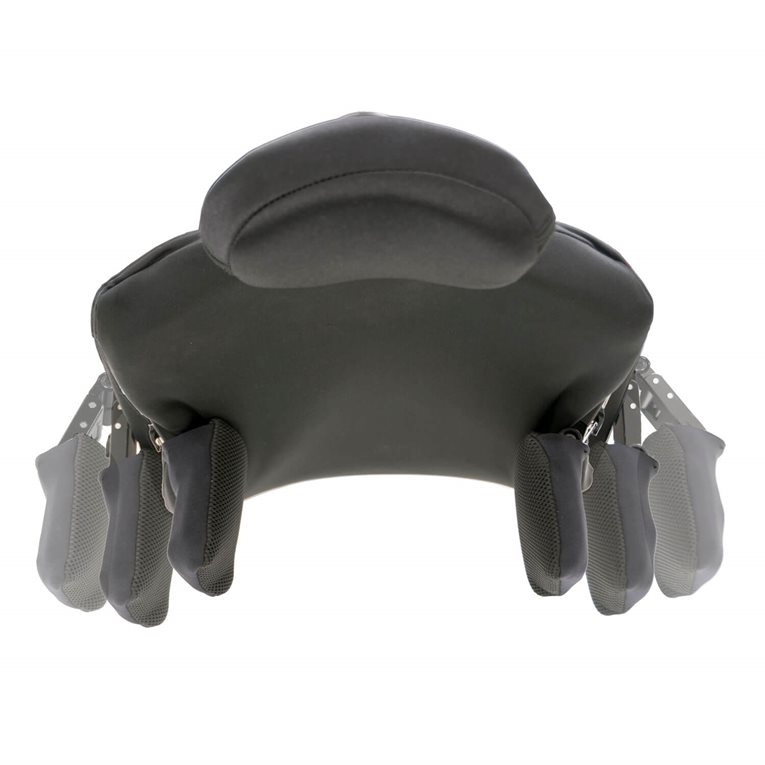

Add a third plane of adjustment to allow the lateral to be angled to match the trunk shape and position for the most complex scoliosis. The lateral pads rotate to meet contour angles and precise alignment. These laterals can be placed exactly where needed so that posture is accommodated and protected. Combine the lateral with a JAY back & cushion, a Whitmyer® headrest, and trunk support to provide optimal positioning for clients.

JAY Rotational Swing-Away Lateral articulation animation

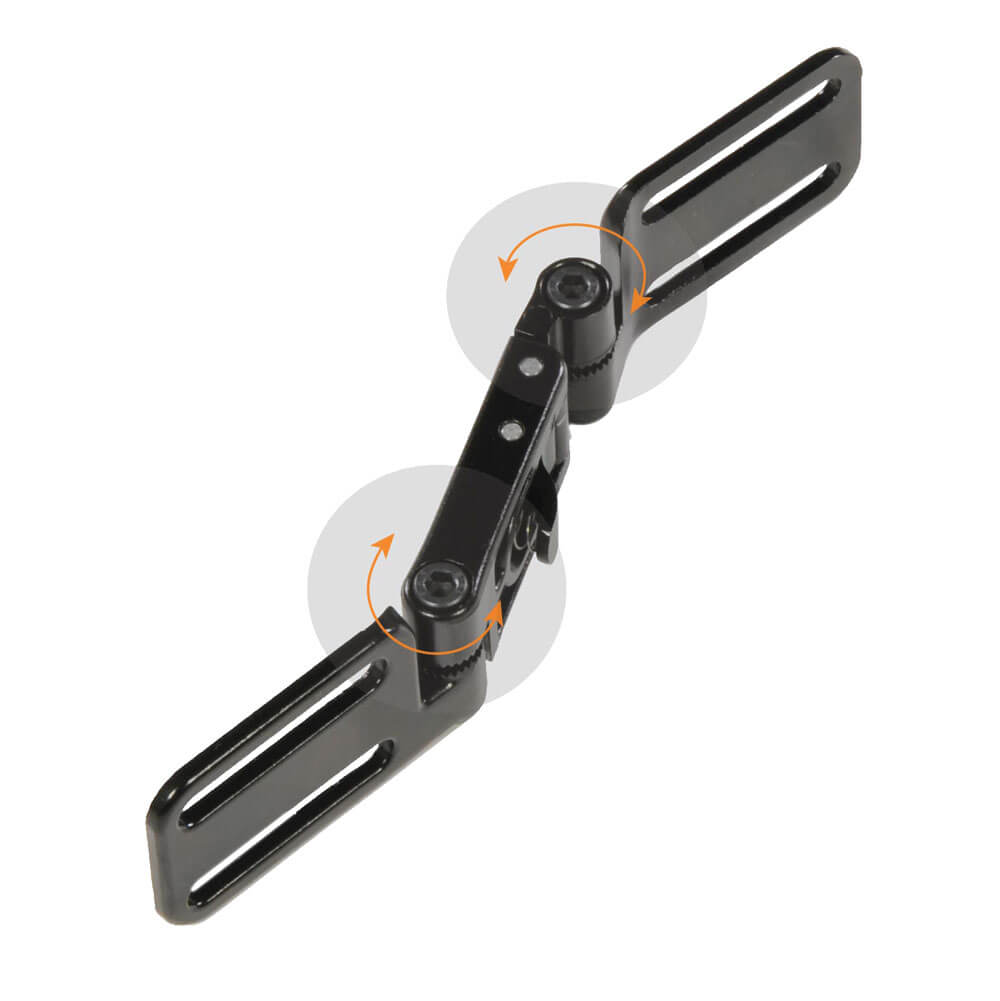

Improved positioning & locking strength

Improved positioning & locking strength

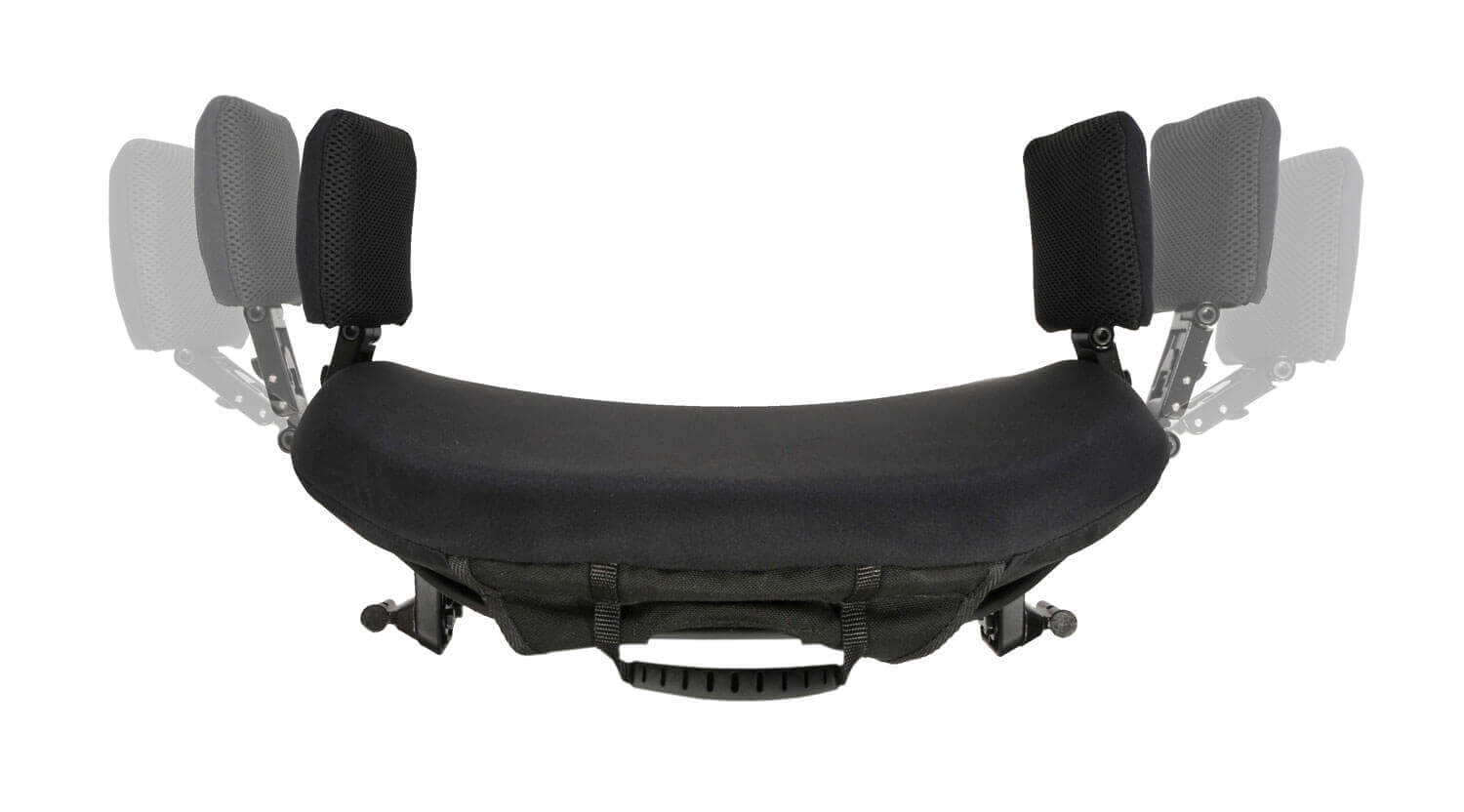

A two pivot point design with interlocking teeth allows for 100mm (3.9") of adjustment and improved locking strength. This helps to keep the lateral positioned where it's needed to help improve stability, posture, and balance.

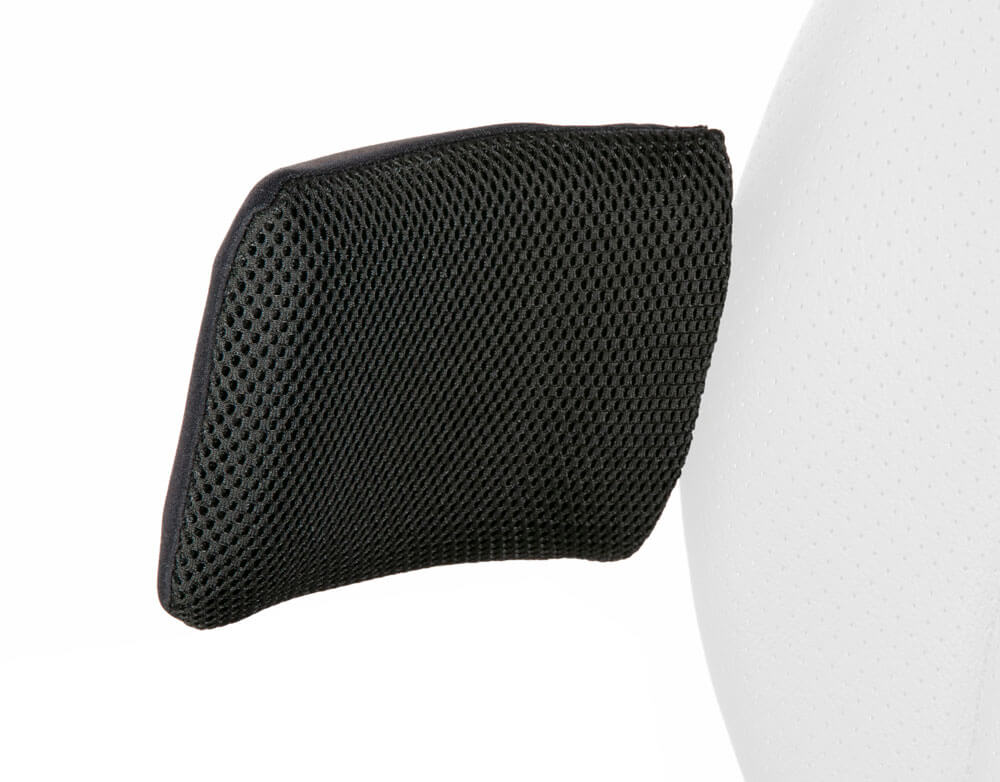

Upholstery options

Upholstery options

Comes standard with a 3DX cover and pad. Stretch, premium leatherette, or reverse Dartex cover options are available through JAY Your Way.

They're great together.

Pair your Swing-Away Lateral Thoracic Supports with these great additions!

QUICKIE Q700 M

QUICKIE Q700 M

Newly redesigned!

QUICKIE Q500 M

QUICKIE Q500 M

Make your own adventure

JAY J3 Wheelchair back

JAY J3™ Back

The most versatile JAY back for all shapes, sizes, and lifestyles

QUICKIE Q300 M Mini Power Wheelchair

QUICKIE Q300 M Mini

The ultra-compact (20.5" width) power wheelchair that's packed with BIG performance.

Specifications

Product Information
HCPCS Code:
  • E0956
  • E1028
Product Type:Positioning Lateral
Dimensions/Weights
Product Height:1.75"
Product Width:
  • Standard Swing-Away: 8.25"
  • Rotational Swing-Away: 10"
Product Depth:0.7"
Product Weight:
  • Standard Swing-Away: 0.7 lbs. each
  • Rotational Swing-Away: 1 lbs. each
Product Options
Mounting Systems:Mounts either internally or externally on the shell.
Construction:Steel
Contact Surface Material:
  • 3DX
  • Stretch
  • Premium Leatherette
  • Reverse Dartex
JAY Your Way Modifications Available:Yes, select cover options.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Looking for something else?

Was the Swing-Away Lateral Thoracic Supports not what you were looking for? Check out these similar products.

JAY Foot Boxes

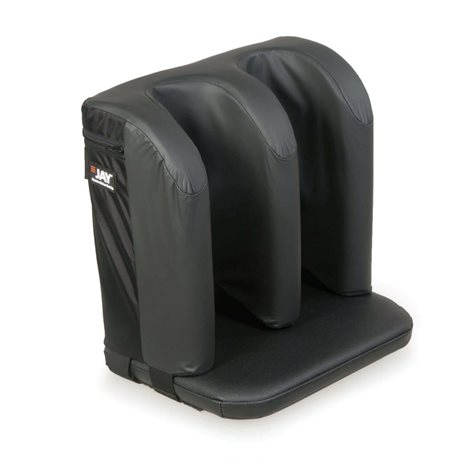

JAY JAY Foot Boxes

Wheelchair support for foot, ankle, and calf skin protection and comfort

JAY Wheelchair Anterior Trunk Supports

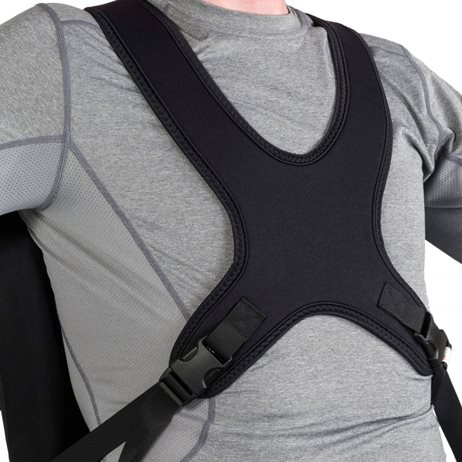

JAY Anterior Trunk Supports

Torso support for improved head and upper extremity control and respiratory function

JAY Wheelchair Hand and Arm Supports

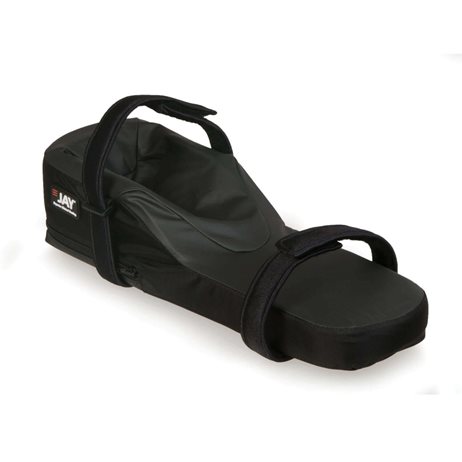

JAY Hand & Arm Supports

Upper extremity support for improved overall upper body posture

JAY Wheelchair Pelvic Positioning Belts

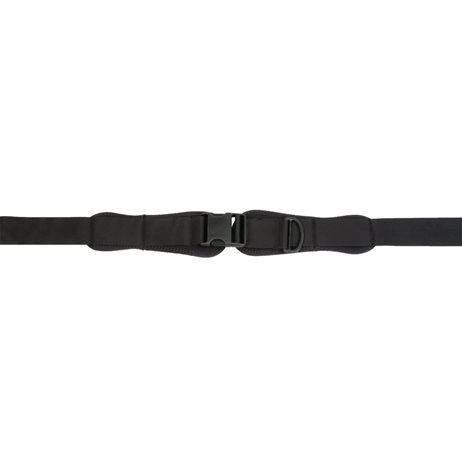

JAY Pelvic Positioning Belts
