Octane Sub4 Rigid Wheelchair

Rethinking the ultra lightweight wheelchair from the ground up.

Find Your Local Dealer
Find Your Dealer

Rethinking the ultra lightweight wheelchair from the ground up.

What weighs 4 kilograms (8.8 lbs)*? A newborn baby. A 7-week old Labrador puppy. The RGK Octane Sub4*. For more than 3 decades, RGK has been at the forefront of made-to-measure manual wheelchair innovation. The Octane Sub4 is the result of our obsessive focus on perfecting fit and materials. Transferring, propelling, lifting, and turning are all effortless with the Octane Sub4.

* Less than 4kg guaranteed, excluding wheels and cushion

Find Your Local Dealer Options and Prices

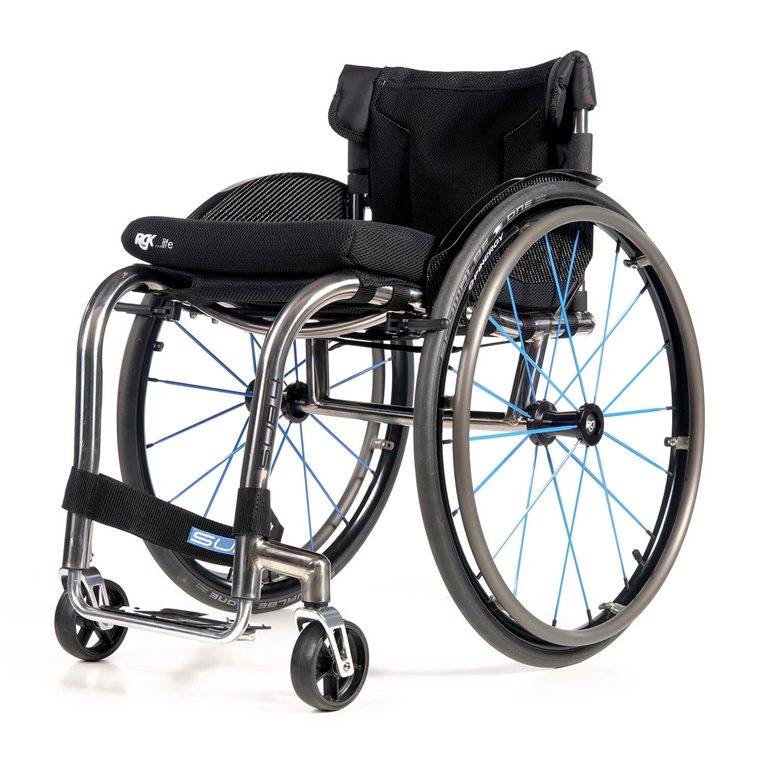

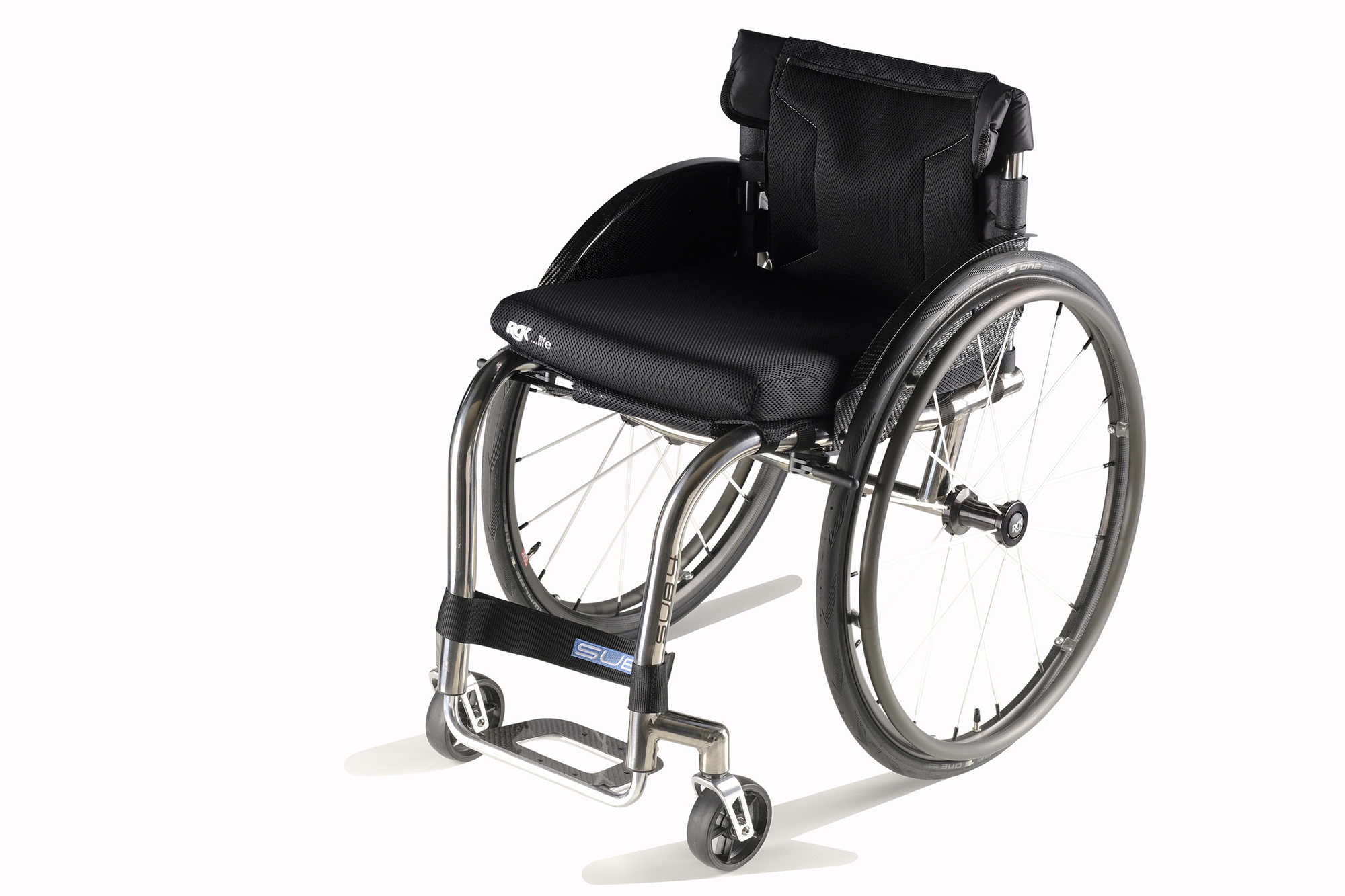

RGK Octane Sub4 Ultra Lightweight Rigid Wheelchair

Engineered for Lightness

Only the best materials are used in the RGK Octane Sub4. Titanium is renowned for having all of the positives of aluminum with the additional bonus of natural, intrinsic shock absorption. The utmost best performance of the Octane Sub4 is ensured by only using components produced by market leaders, alongside a staggering 19 quality checks throughout the build, from initial measurements to final handover.

  • Sports bearing housing
  • Stem bolt complete with integrated washer
  • Low profile caster arm design
  • Low profile cross braces

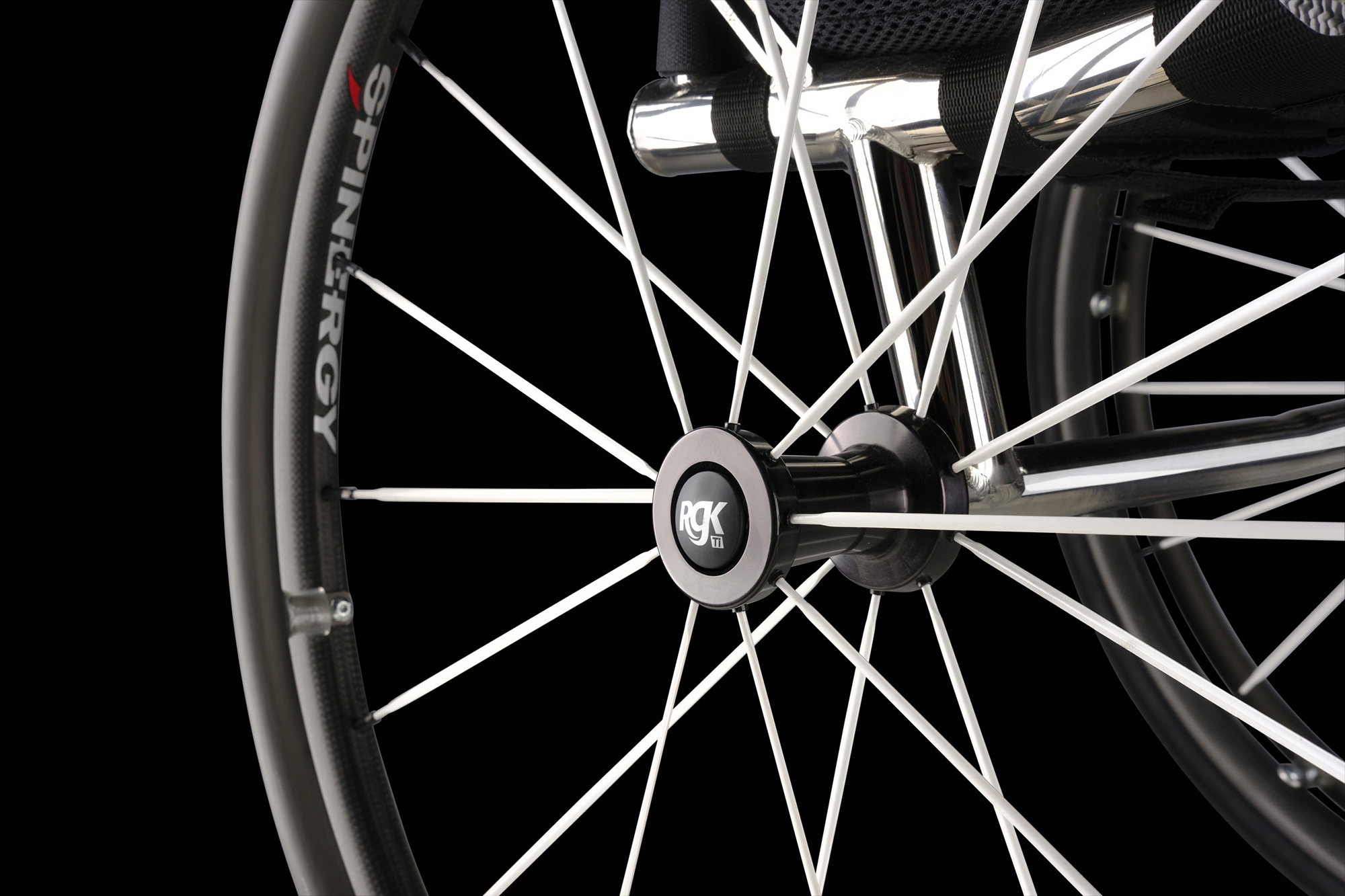

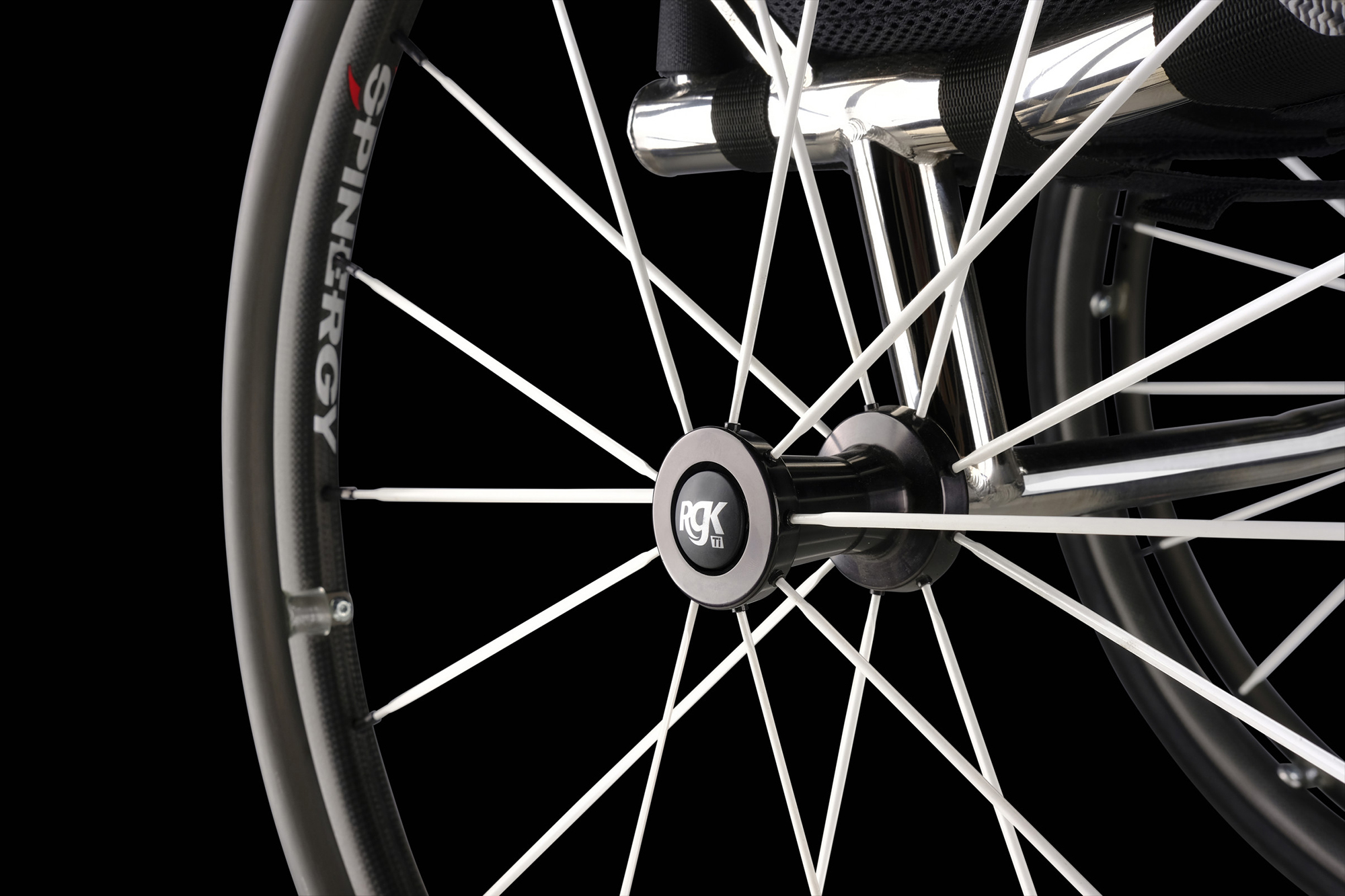

  • Optimized axle and pin setup with titanium sleeves
  • Compact wheel locks with lightweight mounting system
  • Lightweight carbon fiber sideguards with fender and lightweight sideguard mounting system
  • Lightweight carbon fiber footplate
  • Titanium fasteners used throughout
  • Optimized single or dual tube frame design
  • Many non-certified wheelchair options available

The Many Benefits of Titanium

Alongside the smooth ride, beauty, and lightness of titanium, the Octane Sub4's frame material is out of this world. Strong as steel but 45% lighter, titanium has the highest strength-to-weight ratio out of all the known metals. The Octane Sub4 is a breeze to push, wherever you go. It’s built to be durable, so you have peace of mind knowing you can take it anywhere.

  • The Octane Sub4's titanium frame has natural built-in shock absorption to soak up road vibrations, which means that it delivers a super-smooth and comfortable ride quality like none other.

  • Titanium will not rust and is very resistant to corrosion & salt water. It's perfect for adventures out and about.

  • As strong as steel but 45% lighter, titanium has the highest strength-to-weight ratio of all known metals and is often used in aerospace applications.

  • A titanium frame like the Octane Sub4's has a far greater ability to bend without breaking, elongating by up to 25% compared to around 15% for steel and 8% for aluminum.

The Many Benefits of Titanium

Why Choose Made-to-Measure?

  • THE PERFECT FIT
    Over 30 individual measurements down to a 5mm (0.25") tolerance are taken, allowing a chair to be crafted that fits the rider like a prosthetic.
  • LIGHTWEIGHT AND COMPACT DIMENSIONS
    One of the ways to achieve the lightest wheelchair possible is to build that chair exactly to the rider's specifications. That means no excess material, adjustments, or dimensions.
  • ERGONOMIC OPTIONS
    A wide range of ergonomic options such as seats and backrests are available to provide optimum posture, balance, and comfort.
  • RGK GENIUS PROGRAM
    An RGK expert on made-to-measure manual wheelchairs, the RGK Genius will work with the rider, clinician, and provider to create the perfectly fitted chair.

"My made-to-measure sport and daily wheelchairs fit me perfectly. They're lightweight, comfortable, and easy to maneuver. I couldn't ask for anything better." – Abdi Jama, Wheelchair Basketball Paralympian

Airtech Sub4 Technology

Airtech Sub4 Technology

  • Mesh strap-adjustable seat upholstery, including low profile titanium buckles
  • Tension-adjustable backrest and center pad, including mesh cover panels and low profile titanium buckles, for better support and positioning
  • Breathable material to keep you cool
  • Lightweight and tough for longevity with kevlar-reinforced wings
  • Optional leather-reinforced ears for even greater durability
Exclusive RGK Cast Carbon Fiber Components by Spinergy<sup>®</sup>

Exclusive RGK Cast Carbon Fiber Components by Spinergy®

  • More impact-resistant than traditional carbon fiber
  • High strength in all directions
  • Tremendous vibration dampening
  • Extremely lightweight (1.55 grams per cubic centimeter)
  • Cast carbon fiber components include front wheels, rear wheels, sideguards, and footplate

They're great together.

Pair your Octane Sub4 with these great additions!

JAY X2 Wheelchair Cushion

JAY X2™ Cushion

Lightweight, reduced profile skin protection for active users

Specifications

Dimensions
Seat Width:250 to 440mm (in 5mm increments)
Seat Depth:250 to 440mm (in 5mm increments)
Front Seat-to-Floor Height:380 to 520mm (in 5mm increments)
Rear Seat-to-Floor Height:360 to 550mm (in 5mm increments)
Back Height:203 to 431mm (in 5mm increments)
Back Angle Adjustment:20° of adjustment (10° forward and 10° rearward from 90°)
Frame Angle:Determined by Occupied Frame Length - most common is between 60° and 90°
Camber:1° to 3°
Center of Gravity (COG) Adjustment:0 to 178mm
Product Information
Model Number:SBT
Performance/Weights
Frame Material:Grade 9 Titanium
Transit:No
User Weight Capacity:242 lbs. (120 kg)
Product Weight:Less than 8.8 lbs. (4 kg) guaranteed, excluding wheels and cushion

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
