Choosing Your Optimal Manual Wheelchair Power Assist Device

Take it offline!

This Education in Motion resource is also available as a printable PDF.

Download PDF

When choosing a power assist/add-on device for a manual wheelchair, consider that each has distinct capabilities, benefits, and drawbacks. This guide provides an easy-to-understand overview of the considerations and implications for each broad category of devices.

  Independent Propulsion Power Assist Caregiver Power Assist
  Push Devices Wheel Add-Ons Pull Devices Caregiver Push Devices Caregiver Wheel Add-Ons
Product Considerations
Wheelchair Compatibility ★★★★★ ★★★★★ ★★☆☆☆ ★★☆☆☆ ★★★☆☆
Air Travel Considerations ★★★★★ ★★★☆☆ ★☆☆☆☆ ★★★☆☆ ★★☆☆☆
Wheelchair Footprint ★★★★★ ★★★★☆ ★☆☆☆☆ ★★☆☆☆ ★★☆☆☆
Control in Small Environments ★★★★☆ ★★★★★ ★☆☆☆☆ ★★★☆☆ ★★★★☆
Use in Outdoor Environments ★★★★☆ ★★★★☆ ★★★★★ ★★☆☆☆ ★★★☆☆
Use for Extended Distances ★★★☆☆ ★★★★☆ ★★★★★ ★★☆☆☆ ★★★☆☆
Client Considerations
Hand Function/Strength for Attaching to the Wheelchair ★★★★☆ ★★★☆☆ ★☆☆☆☆ ★★☆☆☆ ★★☆☆☆
Ease of Use ★★★★☆ ★★★★☆ ★★☆☆☆ ★★★★☆ ★★★★☆
Options for Degenerative Diagnosis ★★☆☆☆ ★★☆☆☆ ★★☆☆☆ ★★★★☆ ★★★★☆
Considerations with Stopping ★☆☆☆☆ ★☆☆☆☆ ★★☆☆☆ ★★☆☆☆ ★★★★★
Compatibility for Hemiplegic Clients ★★☆☆☆ ★★☆☆☆ ☆☆☆☆☆ ★★★★★ ★★★★★
Hand Function for Controlling ★★★☆☆ ★★☆☆☆ ★☆☆☆☆ ★★★★☆ ★★★★☆

Independent Propulsion Power Assist

There is strong evidence for increased incidence of upper limb (UL) repetitive strain injuries (RSI) among manual wheelchair users. These injuries occur due to repetitive movements and result in muscle tears, inflammation, nerve impingement, bursitis, and pain. They primarily affect the shoulders, wrists, and elbows and can manifest as rotator cuff impairments, carpal tunnel syndromes, and "tennis elbow," among other symptoms. Research indicates that power assist devices can help to preserve independent function & UL health and reduce risk of future damage while still allowing independent mobility with a manual wheelchair.

Push Devices

A unit is clamped on to the wheelchair frame and "pushes" the manual wheelchair forward. Speed on/off is controlled by a hand controller generally mounted on the side rail.

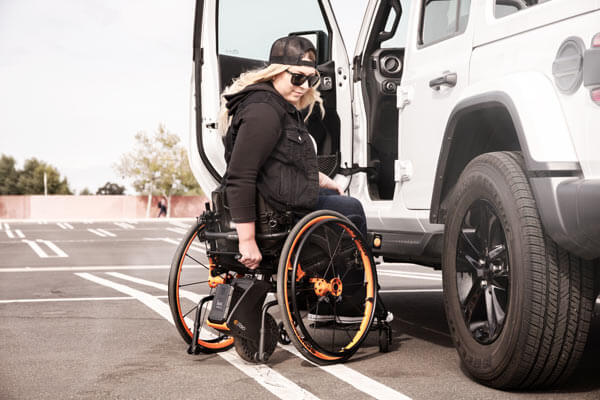

Empulse R90 push device
Push devices are generally the easiest power-assist devices to attach and remove

Product Considerations


WHEELCHAIR COMPATIBILITY

★★★★★


Factor

Most can be used with either folding or rigid manual wheelchairs, but require different brackets depending on type and width.

Consideration

Consider the bracket's weight compared to its durability.

AIR TRAVEL CONSIDERATIONS

★★★★★


Factor

These are the smallest and lightest of the models. Consider whether the battery can be easily removed for air travel. A few have lithium batteries that can be removed and put into the cargo hold of the plane (with prior approval of the airline).

Consideration

Check that the size of the battery meets both distance and transportation requirements.

WHEELCHAIR FOOTPRINT

★★★★★


Factor

The power assist device is mounted to the wheelchair's camber tube to prevent adding width to the system Some devices add length.

Consideration

For the devices that do add length, consider how this will affect maneuverability, especially in small areas.

CONTROL IN SMALL ENVIRONMENTS

★★★★☆


Factor

Good in small environments if the client can control it well. The client will need to pay attention and monitor speed in tighter/busier environments.

Consideration

Consider the client's cognitive ability and wheelchair skills.

USE IN OUTDOOR ENVIRONMENTS

★★★★☆


Factor

Best suited for harder ground and pavement.

Consideration

Depending on the terrain, it can lose traction on soft surfaces like grass and dirt.

USE FOR EXTENDED DISTANCES

★★★☆☆


Factor

Great for longer distance travel.

Consideration

It's not a power wheelchair, but it will allow the client to go further with less fatigue/effort.

Client Considerations


HAND FUNCTION AND STRENGTH FOR ATTACHING/DETACHING TO THE WHEELCHAIR

★★★★☆


Factor

These devices are generally one of the lighter devices in comparison to the other types (13-17 lbs.), allowing easier connection or removal from the wheelchair.

Consideration

Consider if the client has range of motion, motor control, and strength to remove the device. In some models, the wheel can retract off the ground so it doesn't need to be removed when not being used.

EASE OF USE

★★★★☆


Factor

Some systems have simple dials to change the speed, some use push buttons, and some use a series of taps. These devices do not have a braking function and require the rider to stop the wheelchair using handrims after cutting power to the unit using the control system.

Consideration

Consider whether your client has the cognitive ability and reaction speed to adequately control the device, especially in busy areas or at faster speeds. Some of the devices are not as intuitive to use.

OPTIONS FOR DEGENERATIVE DIAGNOSIS

★★☆☆☆


Factor

Most of these devices can adapt to declining strength and UL function. Some are able to adapt to the loss of ability on one side (hemiplegia).

Consideration

Push devices do not have the same programming capabilities as a power wheelchair, and power seat functions can't be added. Consider whether your client would be better suited for a power wheelchair.

CONSIDERATIONS WITH STOPPING

★☆☆☆☆


Factor

Clients need to have the strength to stop the wheelchair by holding the handrims/wheels.

Consideration

Once the chair is set in motion, even if they turn off the device, the chair does not have brakes like a power wheelchair. They will need to physically stop the wheelchair.

COMPATIBILITY FOR HEMIPLEGIC CLIENTS

★★☆☆☆


Factor

Most can be controlled by one hand. Remember they require the rider to stop the wheelchair using the handrims after cutting power to the unit using the control system.

Consideration

These devices can be challenging to use for full hemiplegics.

HAND FUNCTION FOR CONTROLLING

★★★☆☆


Factor

These devices have some type of a control box for speed and on/off.

Consideration

Consider whether your client has adequate strength and finger function to safely control the wheelchair.

Jump back to table


Wheel Add-Ons

Motors are incorporated into the wheels, which then provide forward propulsion.

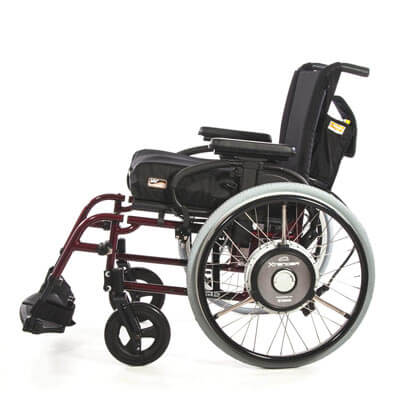

Quickie Xtender
QUICKIE Xtender wheel add-on

Product Considerations


WHEELCHAIR COMPATIBILITY

★★★★★


Factor

Most can be used with either folding or rigid manual wheelchairs, but require different brackets depending on type.

Consideration

With most devices, the wheels are similar to a normal manual wheelchair but with extra weight. The tire options may be limited.

AIR TRAVEL CONSIDERATIONS

★★☆☆☆


Factor

Consider whether the battery can be easily removed for airline travel or transport. Powered wheels need to be stowed carefully.

Consideration

Check that the size of the battery meets transportation requirements. Also some device batteries are easier to remove than others.

WHEELCHAIR FOOTPRINT

★★★☆☆


Factor

Consider whether the device adds width to the wheelchair, as it depends on the unit selected.

Consideration

Consider if the increased width will impede function.

CONTROL IN SMALL ENVIRONMENTS

★★★★★


Factor

Great in small environments where maneuverability is essential, as the client is fully in control of the device.

Consideration

A winner in this regard as long as the footprint size isn't altered and the width doesn't impede getting through doorways or reduce maneuverability.

USE IN OUTDOOR ENVIRONMENTS

★★★★☆


Factor

Best suited for harder ground and pavement.

Consideration

Remember: it is not a power wheelchair and it has normal manual wheelchair-sized wheels and tires.

USE FOR EXTENDED DISTANCES

★★★★☆


Factor

Great for longer distance travel.

Consideration

It's not a power wheelchair, but it will allow the client to go further with less fatigue/effort.

Client Considerations


HAND FUNCTION AND STRENGTH FOR ATTACHING/DETACHING TO THE WHEELCHAIR

★★☆☆☆


Factor

This type of device adds weight to the wheels - some add significant weight, others are minimal additional weight.

Consideration

Consider whether the wheels will need to be removed and how often. Is this doable by the client or family?

EASE OF USE

★★★★☆


Factor

Because the client pushes the handrims like a normal manual wheelchair, learning how to use them is easy. The motor multiplies the force generated and can extend the distance per push.

Consideration

Consider whether your client has the cognitive ability and reaction speed to adequately control the deceleration of the wheelchair, especially in busy areas or at faster speeds.

OPTIONS FOR DEGENERATIVE DIAGNOSIS

★★☆☆☆


Factor

Most wheel add-on devices can be programmed for increasing weakness or to accommodate strength differences.

Consideration

Wheel add-on devices do not have the same capabilities as a power wheelchair, nor can power seat functions be added. Consider whether your client would be better suited to a power wheelchair.

CONSIDERATIONS WITH STOPPING

★☆☆☆☆


Factor

Clients need to have the strength to stop the wheelchair by holding the handrims/wheels.

Consideration

Wheel add-on devices do not have brakes like a power wheelchair. Most have some braking functions and allow the rider to slow down through handrim control using less force than without the power assist.

COMPATIBILITY FOR HEMIPLEGIC CLIENTS

★★☆☆☆


Factor

Can program for one side substantially weaker than the other. Will likely need to use a foot for accurate steering.

Consideration

These devices can be challenging to use for full hemiplegics.

HAND FUNCTION FOR CONTROLLING

★★☆☆☆


Factor

These devices require the client to push the handrims like a normal manual wheelchair, but they multiply the force generated and can extend the distance per push.

Consideration

Consider whether your client has adequate strength and control to push the handrim.

Jump back to table


Pull Devices

A front wheel assembly is attached to the frame of the wheelchair and a motorized wheel provides the power. Handlebars allow the client to steer.

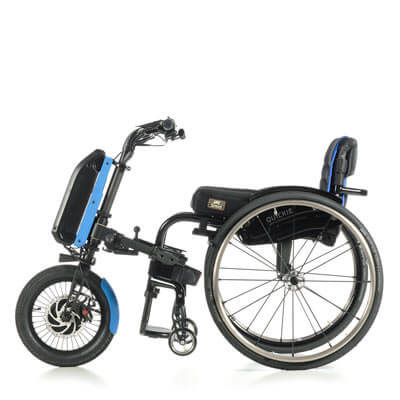

Empulse F55
Empulse F55 pull device

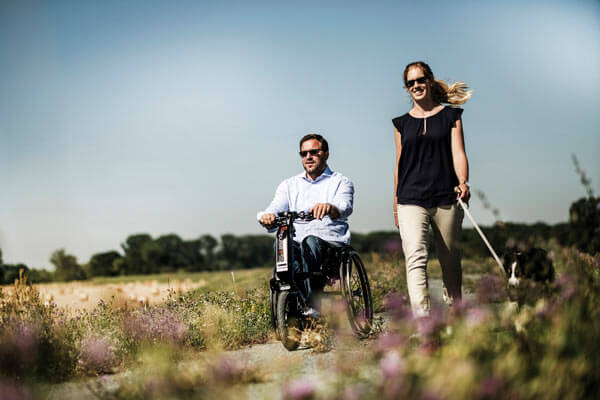

Empulse F55 being used by a man on a trail
Empulse F55 pull device

Product Considerations


WHEELCHAIR COMPATIBILITY

★★☆☆☆


Factor

These devices require a fixed front end so that the unit can clamp onto the wheelchair.

Consideration

Consider whether your client can transfer in and out without swing-away hangers/footplates.

AIR TRAVEL CONSIDERATIONS

★☆☆☆☆


Factor

These devices are bigger and heavier than the other types of power-assist devices.

Consideration

Does the client need to transport the device? If so, how will it be loaded? Is there space available?

WHEELCHAIR FOOTPRINT

★☆☆☆☆


Factor

This device will add substantial length to the wheelchair. Depending on the device, it can substantially reduce maneuverability.

Consideration

Best used in outdoor environments.

CONTROL IN SMALL ENVIRONMENTS

★☆☆☆☆


Factor

Depending on the device, they can substantially reduce maneuverability indoors.

Consideration

Great in outdoor environments and should be removed for most indoor environments. Depending on the device, some are easier to remove than others.

USE IN OUTDOOR ENVIRONMENTS

★★★★★


Factor

Great for outdoor activities. Depending on the device, they can have substantial speed and torque.

Consideration

Does the client have the wheelchair skills and cognitive ability to use the device safely?

USE FOR EXTENDED DISTANCES

★★★★★


Factor

Great for longer distance outdoor travel.

Consideration

As there are many different models, make sure the wheel size and power suits the client's needs and activities.

Client Considerations


HAND FUNCTION AND STRENGTH FOR ATTACHING/DETACHING TO THE WHEELCHAIR

★☆☆☆☆


Factor

These devices are heavier and generally require good hand function to attach to the wheelchair.

Consideration

Consider if the client has the hand function to use. Also, consider whether the attachment clamps stay on the chair (adding weight) when the device is not in use.

EASE OF USE

★★☆☆☆


Factor

These devices are controlled by handlebars with both a throttle and squeeze-trigger brakes.

Consideration

Does the client have trunk control and limb function to control safely at higher speeds and over uneven terrain?

OPTIONS FOR DEGENERATIVE DIAGNOSIS

★★☆☆☆


Factor

These devices require good trunk and upper extremity function.

Consideration

May be tricky for progressive disabilities.

CONSIDERATIONS WITH STOPPING

★★☆☆☆


Factor

Depending on the power assist, it will have manual hand brakes, electronic brakes, or both.

Consideration

Does the client have adequate trunk control and limb/hand function to manage the brakes?

COMPATIBILITY FOR HEMIPLEGIC CLIENTS

☆☆☆☆☆


Factor

These devices are difficult to use for full hemiplegics.

Consideration

A different device should be considered for full hemiplegics.

HAND FUNCTION FOR CONTROLLING

★☆☆☆☆


Factor

These devices are controlled by handlebars, requiring hand grip and strength.

Consideration

Does the client have the strength and endurance to safely manage the device?

Jump back to table


Caregiver Power Assist

There are clients unable to functionally propel manual wheelchairs and cannot successfully operate a power wheelchair. For these clients, research has shown power assist devices can better allow caregivers to provide this mobility, improving client function and participation.

Caregiver Push Devices

A powered wheel is attached to the wheelchair, generally to the rear. These devices are designed for clients who are dependent on carers for mobility but who are also not power wheelchair candidates.

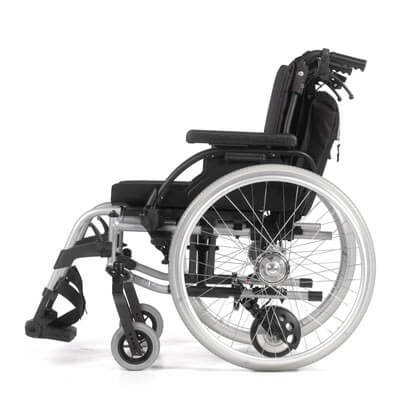

Empulse R20

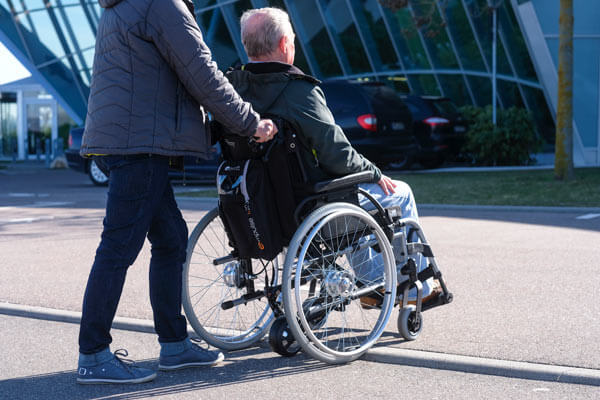

Caregiver push devices can help with climbing curbs

Product Considerations


WHEELCHAIR COMPATIBILITY

★★☆☆☆


Factor

Most of these devices can be used with either a folding, rigid, or tilt-in-space wheelchair. Depending on the device, it can be removed for vehicle transport or the client can sit in the system during transport.

Consideration

Some devices have limitations on the type of tires and wheels that can be utilized.

AIR TRAVEL CONSIDERATIONS

★★★☆☆


Factor

Models differ in this category in regard to how the battery is removed for storage, transport, or charging.

Consideration

Consider the battery's location and whether it's easy to remove for storage or transport.

WHEELCHAIR FOOTPRINT

★★☆☆☆


Factor

Depending on the device, this type of power add-on can add length to the wheelchair.

Consideration

As the unit is generally mounted at the rear of the wheelchair, consider whether this impedes a carer walking behind the wheelchair.

CONTROL IN SMALL ENVIRONMENTS

★★★☆☆


Factor

These devices work quite well in small environments.

Consideration

As the unit is generally mounted at the rear of the wheelchair, consider if the unit adds length.

USE IN OUTDOOR ENVIRONMENTS

★★☆☆☆


Factor

These devices are designed for more urban outdoor environments and generally have slower maximum speeds.

Consideration

Consider whether an add-on wheel can manage the speed and terrain the client requires.

USE FOR EXTENDED DISTANCES

★★☆☆☆


Factor

These devices are designed for assisting caregivers in moving a wheelchair over longer distances.

Consideration

Consider whether an add-on wheel can manage the speed and terrain the client requires.

Client Considerations


HAND FUNCTION AND STRENGTH FOR ATTACHING/DETACHING TO THE WHEELCHAIR

★★☆☆☆


Factor

Models differ in this category in regard to product weight and how they attach to the chair.

Consideration

Consider the ease of adding/removing the device. It's also important to consider if the wheelchair can be folded with the device in place.

EASE OF USE

★★★★☆


Factor

Most units are simple to use with on/off and speed adjustments.

Consideration

Most carers can understand and use these devices successfully.

OPTIONS FOR DEGENERATIVE DIAGNOSIS

★★★★☆


Factor

As these are controlled by the attendant, client loss of function will not impact these devices.

Consideration

Push devices do not have the same capabilities as a power wheelchair, and power seat functions cannot be added. Consider whether a large change in function is anticipated and whether the client might be better suited to a power wheelchair.

CONSIDERATIONS WITH STOPPING

★★☆☆☆


Factor

The device has power and speed up/down control. Depending on the device, it may or may not have electronic braking.

Consideration

Does the caregiver have adequate strength/skill to manage the chair in the necessary environments, including steering and stopping? Some devices may not have electronic brakes.

COMPATIBILITY FOR HEMIPLEGIC CLIENTS

★★★★★


Factor

As these devices are controlled by the attendant, they can be appropriate for more complex hemiplegic clients.

Consideration

Appropriate for dependent hemiplegic users. Remember: it does not have the capacity of a power wheelchair.

HAND FUNCTION FOR CONTROLLING

★★★★☆


Factor

These devices have some type of a control box to adjust speed and on/off. This control box is mounted in the attendant position on the back canes.

Consideration

Some devices use very simple dials/push buttons. Others use squeeze triggers. Consider the ease of use for the caregiver.

Jump back to table


Caregiver Wheel Add-On

Powered wheels are attached to the wheelchair, replacing the normal rear wheels. These devices are designed for clients who are dependent on carers for mobility but who are not power wheelchair candidates.

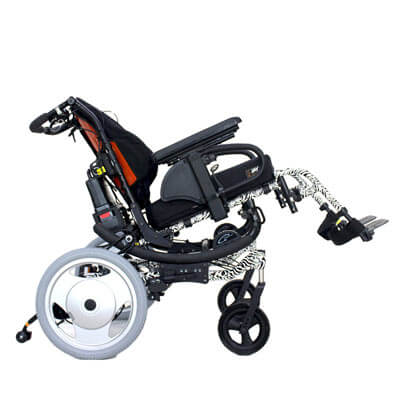

ZIPPIE iXpress
ZIPPIE iXpress caregiver wheel add-on

Product Considerations


WHEELCHAIR COMPATIBILITY

★★★☆☆


Factor

Most of these devices can be used with either a folding, rigid, or tilt-in-space wheelchair.

Consideration

Some devices have limitations on the type of tires that can be utilized. Consider if this is an important maintenance issue.

AIR TRAVEL CONSIDERATIONS

★★☆☆☆


Factor

Models differ in this category in regard to how the battery is removed for storage, transport, or charging.

Consideration

Consider the battery's location and whether it's easy to remove for storage or transport.

WHEELCHAIR FOOTPRINT

★★☆☆☆


Factor

The powered wheels can add to the overall width of the wheelchair.

Consideration

Consider if the increase in width will impede function and maneuverability.

CONTROL IN SMALL ENVIRONMENTS

★★★★☆


Factor

Most devices do not add additional length to the wheelchair, but could add width.

Consideration

A winner in this regard as long as the added width doesn't impede getting through doorways or reduce maneuverability.

USE IN OUTDOOR ENVIRONMENTS

★★★☆☆


Factor

These devices are designed for urban outdoor environments with harder surfaces.

Consideration

A great solution for a dependent user who is not a power wheelchair candidate and is using the device mostly on sidewalks and paved surfaces.

USE FOR EXTENDED DISTANCES

★★★☆☆


Factor

These devices are designed for urban outdoor environments. They generally have higher speeds, more power, and a bit more capacity when compared to add-on wheel devices.

Consideration

A great solution for a dependent user who is not a power wheelchair candidate and whose carer cannot push a manual wheelchair over the distances required.

Client Considerations


HAND FUNCTION AND STRENGTH FOR ATTACHING/DETACHING TO THE WHEELCHAIR

★★☆☆☆


Factor

Models differ in this category in regard to product weight and how they attach to the chair. Some are considerably more complicated to remove than others.

Consideration

Consider if the device needs to be removed from the wheelchair. Most can stay on a wheelchair permanently. If the chair needs to be folded, consider if the device allows this.

EASE OF USE

★★★★☆


Factor

Most units are simple to use with on/off and speed adjustments.

Consideration

These devices are simple to learn how to use.

OPTIONS FOR DEGENERATIVE DIAGNOSIS

★★★★☆


Factor

As these are controlled by the attendant, client loss of function will not impact these devices.

Consideration

Wheel add-on devices do not have the same capabilities as a power wheelchair, and power seat functions cannot be added. Consider whether a large change in function is anticipated and whether the client might be better suited to a power wheelchair.

CONSIDERATIONS WITH STOPPING

★★★★★


Factor

These devices have power and speed up/down control. Depending on the device, it may or may not have electronic braking.

Consideration

These devices are easy for caregivers to use.

COMPATIBILITY FOR HEMIPLEGIC CLIENTS

★★★★★


Factor

As these devices are controlled by the attendant, client hemiplegia will not impact their use of the device.

Consideration

Appropriate for dependent hemiplegic users. Remember: it does not have the capacity of a power wheelchair.

HAND FUNCTION FOR CONTROLLING

★★★★☆


Factor

These devices have some type of a control box to adjust speed and on/off. This control box is mounted in the attendant position on the back canes.

Consideration

Some devices use very simple dials/push buttons. Consider the ease of use for the attendant.

Jump back to table


References

  1. Kentar, Y. et al. 2018. Prevalence of upper extremity pain in a population of people with paraplegia. Spinal Cord 56, 695-703.
  2. Choukou, Best, K. L., Potvin-Gilbert, M., Routhier, F., Lettre, J., Gamache, S., Borisoff, J. F., & Gagnon, D. (2021). Scoping review of propelling aids for manual wheelchairs. Assistive Technology, 33(2), 72-86. https://doi.org
  3. Didier Pradon, Elodie Garrec, Isabelle Vaugier, Thierry Weissland & Caroline Hugeron (2021) Effect of power-assistance on upper limb biomechanical and physiological variables during a 6-minute, manual wheelchair propulsion test: a randomised, cross-over study, Disability and Rehabilitation, DOI: 10.1080/09638288.2021.1973586
  4. Elliot W. Flockhart, William C. Miller, Jory A. Campbell, Johanne L. Mattie & Jaimie F. Borisoff (2021) Evaluation of two power assist systems for manual wheelchairs for usability, performance and mobility: a pilot study, Disability and Rehabilitation: Assistive Technology, DOI: 10.1080/17483107.2021.200106
  5. Khalili, Eugenio, A., Wood, A., Van der Loos, M., Mortenson, W. B., & Borisoff, J. (2021). Perceptions of power-assist devices: interviews with manual wheelchair users. Disability and Rehabilitation: Assistive Technology, ahead-of-print(ahead-of-print), 1-11. https://doi.org
  6. Sawatzky, Mortenson, W. B., & Wong, S. (2018). Learning to use a rear-mounted power assist for manual wheelchairs. Disability and Rehabilitation: Assistive Technology, 13(8), 772-776. https://doi.org
  7. Wong, Mortenson, B., & Sawatzky, B. (2019). Starting and stopping kinetics of a rear mounted power assist for manual wheelchairs. Assistive Technology, 31(2), 77-81. https://doi.org

Published: 2024-09-09


DISCLAIMER: FOR PROFESSIONAL USE ONLY. THIS WEBSITE (AND THE DOCUMENTS REFERENCED HEREIN) DO NOT PROVIDE MEDICAL ADVICE. Sunrise Medical (CA) LLC ("Sunrise") does not provide clinician services. The information contained on this website (and the documents referenced herein), including, but not limited to, the text, graphics, images, and descriptions, are for informational purposes only and should be utilized as a general resource for clinicians and suppliers to then use clinical reasoning skills to determine optimal seating and mobility solutions for individual patients. No material on this website (or any document referenced herein) is intended to be used as (or a substitute for) professional medical advice, diagnosis or treatment. Never disregard your professional medical training when providing medical advice or treatment because of something you have read on this website (or any document referenced herein). Clinicians should review this (and any other materials) carefully and confirm information contained herein with other sources. Reliance on this website (and the information contained herein) is solely at your own risk.
